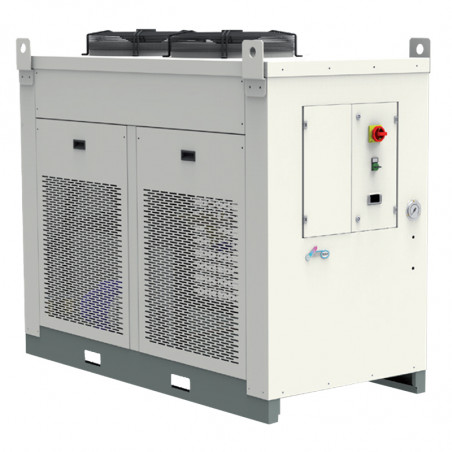

Промишлени охладители, чилери за охлаждане на масло серия 3 TCO
  • Промишлени охладители, чилери за охлаждане на масло серия 3 TCO

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: TEXA industries

Промишлени охладители, чилери за охлаждане на масло серия 3 TCO

Coolers series 3 for oil cooling TCOA2-A9


Cooling power range 12300 - 20700 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R410A.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consists of high pressure oil pump 20bar, pressure control valve 5bar. Manometer 0-25 bar. Oil container is mounted on the client request.
Temperature control Done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Chłodnice, Chillery do chłodzenia oleju serii 3 TCO wymiar


Technical data

Type TCO A2 TCO A4 TCO A7 TCO A9
Nominal cooling power [W] 12300 16400 17800 20700
Ambient temperature range [°C] +15 ÷ +45
Oil temperature range [°C] +20 ÷ +35
Cooling liquid R410A
Power supply [V/Hz] 400 3f / 50
Power [W] 7500 9200 940 0 10200
Pump
Oil flow [l/min] 40,0 40, 0 40, 0 40,0
Oil pressure [bar] 20,0 20, 0 20, 0 20,0
Container capacity [l] 150 (oil container mounted on clients request)
Water terminal [BPS] 1"
Weight [kg] 230 235 245 250
