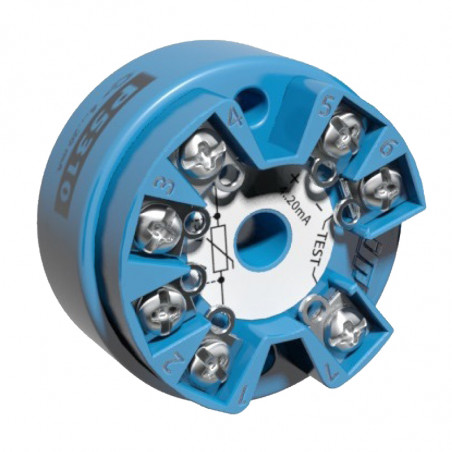

P5310 универсални програмирани на преобразователи с комуникция LHP
  • P5310 универсални програмирани на преобразователи с комуникция LHP

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: JSP Industrial Controls

P5310 универсални програмирани на преобразователи с комуникция LHP

Features

  • One type of transmitter for all common resistance and thermoelectric sensors
  • Unified current output signal 4 to 20 mA with a linearization
  • Accuracy from 0.1% for ranges down to 1/5 of the basic range
  • Span adjustability from 1% to 100% of the basic range
  • Galvanic isolation of input from output 1000 V AC (P5311)
  • Adjustable by program LHPWinConf and standard HART modem or by field configurator LHPConf (HARTConf)
  • Meet harsh industrial requirements and EMC standards according to EN 61326-1/A1
  • Intrinsically Safe Version (Ex) II 1GD

Technical data

Supply voltage 9...35 VDC
Operation temperature: -40...85°C
Ambient reference voltage: 23 ± 5oC
Degree level: execution H1x IP40, clamps IP00 after installation in head - head protection level
  execution L1x IP20
Humidity: execution H1x 0 - 100% with condensation after installation in head
  execution  L1x 10 - 80% humidity without condensation
Cable connection screw clamps for section: 0,5 - 1,5mm2, screw torque 0,5 Nm.
heating time after supply connection: 5s
Program time with PC: 5s
Type program with PC: 15s
Slat type DIN: TS 35 according to DIN 46277
Dimensions (H.xW.xL.) H1x 44x24 mm
  L1x 17,5x62,5x64 mm
Casing material H1x polycarbonate
  L1x polyamide
Weight: H1x,L1x40g
Operation position: arbitrary
