Скрининг панели. Изгорен
  • Скрининг панели. Изгорен

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: TEMAS

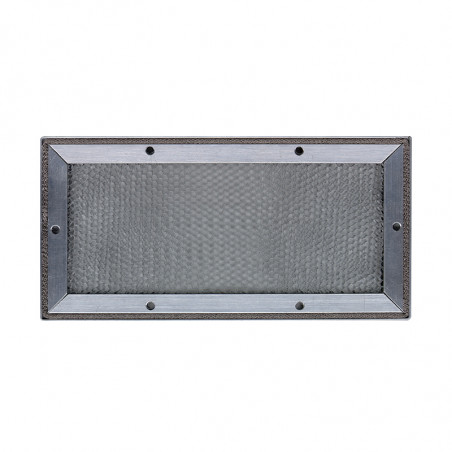

Скрининг панели. Изгорен

Shielding air vent panels

Features:

  • high level of emi/rfi suppression combined to air flow in shielded enclosures
  • aluminium honeycomb for highest airflow of any vent medium (low static pressure drop) (stainless steel material upon request)
  • furnished ready to install with standard aluminium frame and emi shielding gasket (fastener or thru-holes on the frame for fixing)
  • Hexagon cell size 1/8” (3.2 mm) (slant cell 45° available upon request)
  • Thickness 1/2" (12.7 mm) or 1/4"+1/4” (6.35+6.35 mm)
  • Surface Finish for environmental protection (Surtec 650 standard ; metal plating upon request)



Honeycomb panels

Panele ekranujące odpowietrzniki - struktura plastra miodu
P/N Length
[mm]		 Width
[mm]		 No. Fixing holes

HP.102.102

 102 102 4

HP.102.152

 102 152 6

HP.076.204

 76 204 8

HP.076.305

 76 305 10

HP.127.127

 127 127 6

HP.127.254

 127 254 8

HP.153.305

 153 305 10

HP.178.178

 178 178 8

HP.203.305

 203 305 14

HP.254.254

 254 254 12

HP.254.457

 254 457 16

HP.305.406

 305 406 18

HP.305.610

 305 610 22

Wire screen panels

Panele ekranujące odpowietrzniki - panel z ekranem siatkowym
P/N Length
[mm]		 Width
[mm]		 No. Fixing holes

MP.076.076

 76 76 4

MP.076.152

 76 152 6

MP.076.203

 76 203 8

MP.076.254

 76 254 8

MP.076.305

 76 305 10

MP.102.102

 102 102 4

MP.102.152

 102 152 6

MP.127.127

 127 127 4

MP.127.178

 127 178 6

MP.127.254

 127 254 8

MP.153.153

 153 153 8

MP.153.254

 153 254 10

MP.153.305

 153 305 12


Other cell size, thicknesses, dimension or finish surface treatments (according to your drawing) available upon request

Steel honeycomb panels





Panele ekranujące odpowietrzniki - panel ze stali cynkowej o stukturze plasta miodu

Aluminium frame: 15x15 mm

Typical attenuation
  H-field E-field Plane wave
  100 kHz 10 MHz 1 GHz
3,2mm 60 dB 80 dB 50 dB

Typical attenuation
  H-field E-field Plane wave
  100 kHz 10 MHz 1 GHz
3,2mm 50 dB 15 dB 50 dB

По-малко
