Производител: FLEXICON

Peszel FPIH - тежки гъвкави гъвкави Pezel от найлон (PA12)

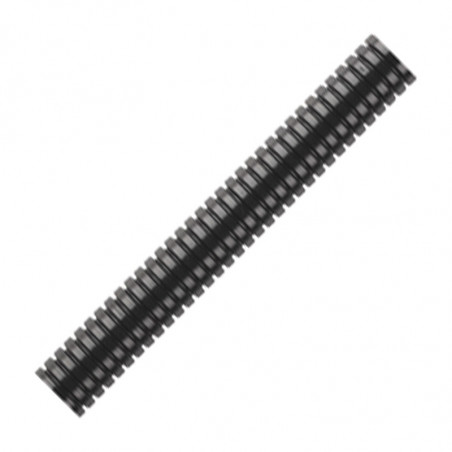

FPIH - Non-Metallic Conduits – Heavy weight nylon (highly flame re-tardant PA12) corrugated flexible conduit

Peszel FPIH – ciężki elastyczny karbowany peszel z nylonu (PA12)

Properties:
Material; Nylon PA12 (Highly flame retardant)
Colour: black
Fire Performance: Highly flame retardant, halogen, sulphur and phosphorous free
Temperature Performance: -50OC +110OC
IP Rating:
• IP66 with FPA fittings
• IP66+67+68+69K with FPAX fittings
Compression Strength 45kg/100mm
Pull-off (Tensile) strength 50kg FPA [&] FPAX fittings
Odporny na UV

Typical Applications;

Peszel FPIH – ciężki elastyczny karbowany peszel z nylonu (PA12) zastosowanie maszyny Machinery and OEM’s Peszel FPIH – ciężki elastyczny karbowany peszel z nylonu (PA12) kolejnictow zastosowanie Rail

Compliance, Approvals [&] Accreditation;
Peszel FPIH – ciężki elastyczny karbowany peszel z nylonu (PA12) certyfikat
EN 61386 Classification Available on request

File No. E229161


Nominal Size Pitch
F= fine
C= coarse		 Part No Reel Length
[m]		 OD
[mm]		 Min ID
[mm]		 Min inside Bend
radius R
[mm]		 Compression
Strength
kg/100mm		 Weight
[g/m]
13 F

FPIH13B

 50 13.0 9.0 25 70 31
16 F

FPIH16B

 50 15.8 11.5 35 70 42
21 C

FPIH21B

 50 21.2 15.0 45 60 75
28 C

FPIH28B

 50 28.5 21.3 50 110 120
34 C

FPIH34B

 25 34.5 26.9 60 90 150
42 C

FPIH42B

 25 42.5 34.6 70 100 190
54 C

FPIH54B

 25 54.5 46.0 80 100 250
67 C

FPIH67B

 10 67.2 56.0 130 80 350
