Производител: Icel

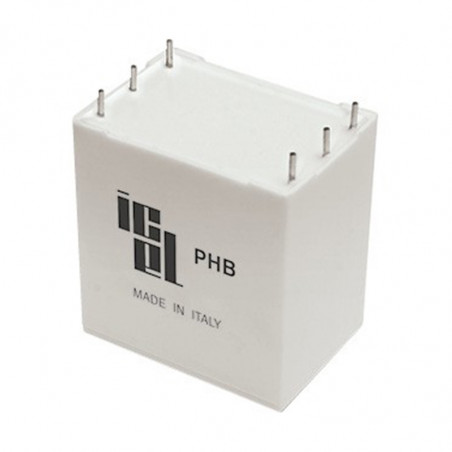

PHB / RHB - полипропиленови кондензатори

Main applications

  • Switching capacitor for industrial and motor speed controls
  • High frequency electronic ballasts, switching mode power supplies,
  • resonant circuits, induction heaters, high-end audio applications

Execution and reference standard

  • Extended metallized film
  • Internal series connection for Ur≥850Vdc
  • Box with multiple (2, 4 or 6) radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS


PHB/RHBUrCn (μF)du/dt (V/μs)Irms max. (A)Nom. size D (mm) x L (mm)Pitch (mm)
250 Vdc (150/160 Vac) 1 ÷ 100 15 ÷ 50 4.5 ÷ 34.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
330 Vdc (200/220 Vac) 0.68 ÷ 60 17 ÷ 60 5 ÷ 33 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
400 Vdc (275 Vac) 0.47 ÷ 35 20 ÷ 75 4.5 ÷ 30.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
435 Vdc (260 Vac) 4.7 ÷ 40 32.5 ÷ 70 11 ÷ 27 18x33x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
570 Vdc (330 Vac) 1.5 ÷ 25 43.5 ÷ 95 7 ÷ 29 15x24.5x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
600 Vdc (350Vac) 0.22 ÷ 20 30 ÷ 95 3.5 ÷ 30.5 7x16x26.5 ÷ 38x57.5x57.5 27.5 ÷ 52.5
675 Vdc (370 Vac) 1.2 ÷ 18.5 50 ÷ 110 6.5 ÷ 28.5 15x24.5x32 ÷ 38x57.5x57.5 27.5 ÷ 52.5
700 Vdc (400 Vac) 0.15 ÷ 12.5 40 ÷ 135 4 ÷ 29.5 7x16x26.5 ÷ 38x57.5x57.5 27.5 ÷ 52.5
850 Vdc (500 Vac) 0.1 ÷ 8.2 110 ÷ 375 4 ÷ 36 7x16x26.5 ÷ 38x57.5x57.5 27.5 ÷ 52.5

Product Card - Download
