СЕРИЯ EL | AC ИЗХОД

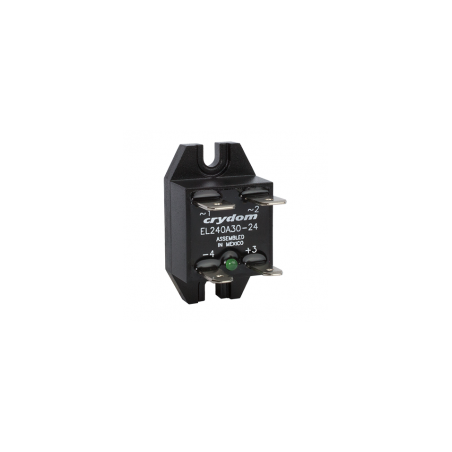

Sensata | Crydom EL AC Solid State Relays are available in compact 21 x 35 mm housings and offer a range of up to 30 amps. These compact SSRs come with a pre-installed thermal pad, LED input status indicator, optional transient protection, and are certified by C-UL-US and TUV, as well as listed by UL. The mechanical design of the EL series includes fast-on terminals and innovative 90-degree bent terminals, making them ideal for space-constrained vertical applications.

Features

  • Ratings of 5A, 10A, 20A, and 30A at 24-280 VAC
  • UL, TUV, CE, and RoHS listed
  • Control for 5, 12, and 24 VDC
  • No-voltage or zero-crossing outputs
  • LED input status indicator
  • Pre-installed thermal pad
  • Plastic housing with minimum 250 CTI (PLC2) rating for demanding applications

Applications

  • Coffee machines
  • Plastic injection molding equipment
  • Packaging machines
  • Professional kitchen equipment
  • Lighting control
  • HVAC & Refrigeration

Product Selection

Control Voltage 5A 10A 20A 30A
4-8 VDC EL240A5-05 EL240A10-05 EL240A20-05 EL240A30-05
10-14 VDC EL240A5-12 EL240A10-12 EL240A20-12 EL240A30-12
21-27 VDC EL240A5-24 EL240A10-24 EL240A20-24 EL240A30-24


Specifications

Output

Description 5A 10A 20A 30A
Operating Voltage (47-63Hz) [Vrms] 24-280 24-280 24-280 24-280
Maximum Load Current [Adc] 5 10 20 30
Minimum Load Current [mArms] 150 150 250 250
Surge Voltage [Vpk] 600 600 600 600
Maximum Single Cycle Surge Current (50/60Hz) [Apk] 115/120 145/150 240/250 260/280
Maximum I2t for Fusing (½ cycle) (50/60Hz) [A2sec] 65/60 100/95 285/260 338/326
Minimum Off-State dV/dt at Maximum Rated Voltage [V/usec] 500 500 500 500
Maximum Off-State Leakage Current at Rated Voltage[mArms] 0.1 0.1 0.1 0.1
Thermal Resistance Junction-Case (Rjc) [degrees Celsius/W] 5.5 3.0 1.7 0.9
Maximum On-State Voltage Drop at Rated Current[Volts] 1.3 1.3 1.3 1.3
Minimum Power Factor (at Maximum Load) 0.7 0.7 0.7 0.7


Input

Description EL240Axx-05 EL240Axx-12 EL240Axx-24
Control Voltage Range 4-8 VDC 10-14 VDC 21-27 VDC
Minimum Turn-On Voltage 4 VDC 10 VDC 21 VDC
Must Turn-Off Voltage 1 VDC 1 VDC 1 VDC
Minimum Input Current 6 mA 10 mA 8 mA
Maximum Input Current 21 mA 21.5 mA 19 mA
Maximum Turn-On Time [msec] ½ cycle ½ cycle ½ cycle
Maximum Turn-Off Time [msec] ½ cycle ½ cycle ½ cycle


General

Description EL240Axx-05 EL240Axx-12 EL240Axx-24
Control Voltage Range 4-8 VDC 10-14 VDC 21-27 VDC
Minimum Turn-On Voltage 4 VDC 10 VDC 21 VDC
Must Turn-Off Voltage 1 VDC 1 VDC 1 VDC
Minimum Input Current 6 mA 10 mA 8 mA
Maximum Input Current 21 mA 21.5 mA 19 mA
Maximum Turn-On Time [msec] ½ cycle ½ cycle ½ cycle
Maximum Turn-Off Time [msec] ½ cycle ½ cycle ½ cycle
