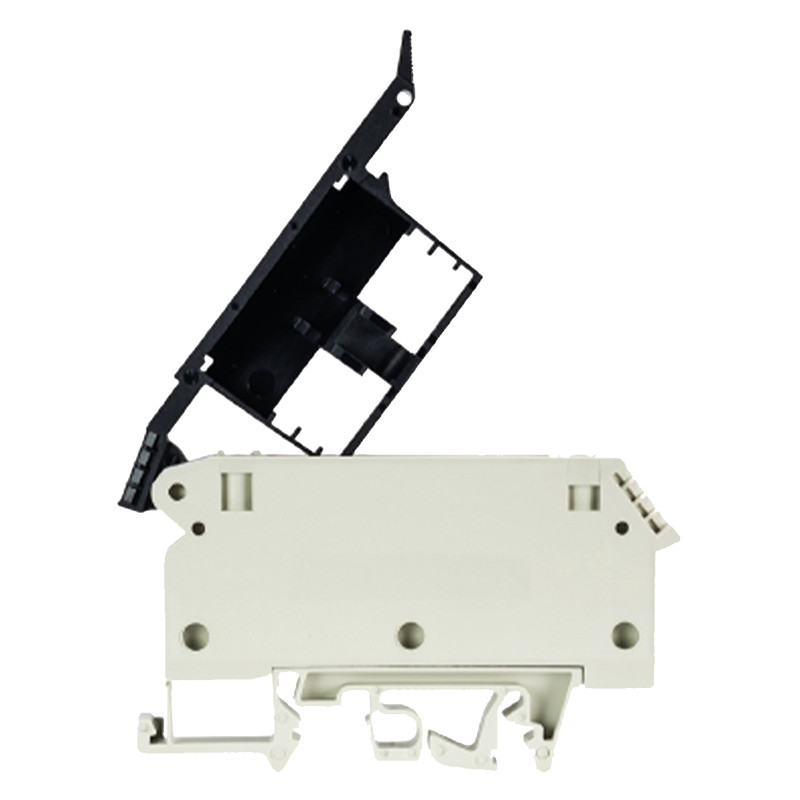

Конектори с предпазители
  • Конектори с предпазители

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Wieland Polska: złącza, przekaźniki bezpieczeństwa i podzespoły

Конектори с предпазители

Fuse insert
Nominal voltage: 250 V,
nominal current: VDE 0820 T2/IEC 257
Power loss 1,5 W
   - 6,3 A with single joint
   - 4 A with serial joints

sygnalizer (24 V): Glowing colour red
     Current consumption: 10,3 mA
sygnalizer . (220 V): lowing colour red
     Current consumption: 0,3 mA
  WK 4 TKG...SIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,3*)
Data UL
No. 22-10 AWG
   300 V*) 10
Data CSA
No. 20-10 AWG
   250 V*) 6,3
Construction width.     insulation length
6 mm
   9 mm

Certificates
  Type Catalogue number Package
Disconnectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.
Si ST
 Z1.299.4055.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST LED
 Z1.299.4155.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST GL
 Z1.299.4255.0 10
Diode insert J... = 10 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert with bridge j _10A
colour: grey

Disconectable with knife
colour: grey

  colour: blue.
- with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10
  colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6. Single short circuit switch cover

7. Separate plate




         )
nbsp]              katoda        )
  WK 4 TKG...DIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3
Data UL
No. 22-10 AWG
   300 V 10
Data CSA
No. 20-10 AWG
   250 V 6,3
Construction width.     insulation length
6 mm
     9 mm

Certificates
  Type Catalogue number Package
Disconectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.

Base for fuse with nominal signal (24V)
colour: grey

Base for fuse with nominal signal (220V)
colour: grey

Diode insert J... = 10 A
colour: grey
DIST...
 Z1.299.3055.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1N 4007-11)
 Z1.299.3155.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1 N 4007-22)
 Z1.299.3355.0 10
Diode insert with bridge j _10A
colour: grey
DIST-D
 Z1.299.3255.0 10
Disconectable with knife
colour: grey


colour: blue.

with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10

colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6.Single short circuit switch cover

7.
Separate plate










  WK 4 ThSI 5.../U
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,31)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 6,3
Construction width.     insulation length
8 mm
     8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 5...U
 57.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 5 LED 12 U
 57.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 5 LED 24 U
 57.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 5 LED 60 U
 57.904.5655.0 50
-with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 5 GL 250 U
 57.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 5 GL 500 U
 57.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

-with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover















  WK 4 ThSI 6,3..AI
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 102)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 10
Construction width.     insulation length
10 mm
   8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 6,3...U
 67.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 6,3 LED 12 U
 67.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 6,3 LED 24 U
 67.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 6,3 LED 60 U
 67.904.5655.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 6,3 GL 250 U
 67.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 6,3 GL 500 U
 67.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

- z with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover







Type WK




  WK 10/SI.../U
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint Base joint
colour: grey
WK10/SiU5x202)-8)9)10)
 57.910.5055.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x252)-8)9)10)
 57.910.5155.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK10/SiU5x302)-8)10)
 57.910.5255.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x321)-8)10)
 57.910.5355.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat ze stopką U
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover










  WK 10/SI.../U mit Kennmelder
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK10/SiU5x20M,NGL2)-6)7)8)
 57.910.5455.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x20M,GLB2)-6)7)8)
 57.910.5855.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WKIO/Si U B.3x32M, NGL1)-6)8)
 57.910.5755.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x32M,GLB1)-6)8)
 57.910.6155.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
   Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm
   VDE           CSA UL
Closing slat TS 32 with screw
width. 7,5 mm
57.910.5453.0

3. Closing plate 1,5 mm
colour: grey
nominal signalizer
 -250 V ~     500 V 150 V
4. short circuit switch, E-Cu
current consumption 0.16-0,8 mA9)
57.910.5853.0

non insulated
2-pole.
nominal signalizer         2
 8 V~          28 V 28 V

3-pole.
current consumption 24 mA10)


do 6-pole.
57.910.5753.0

5. Transparent cover
nominal signalizer
 -500 V ~     500 V 150 V

current consumption 0,16-0,8 mA9)
57.910.6153.0


nominal signalizer
 8 V~          28 V 28 V

current consumption 24 mA10)






  WK 10/SI U D
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10mm2
 1-16mm2 500V/6kV/3 57
Data UL
No. 22-6 AWG
   600 V 50
Data CSA
No. 16-6 AWG
   600 V 65
Construction width.     insulation length
12 mm
     13 mm

Certificates

<tr clas
  Type Catalogue number Package
Fuse joint base joint
colour: grey

- with LED 5-12 V ~/=- current consumption
2,3-7 mA

- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA

- with LED 24 - 60 V~/™ current consumption
1,5-4 mA

- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK10/SiUD
 57.910.4955.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: yellow
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus 32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

По-малко
Прочетете още

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас
ПОИСКАЙТЕ ПРОДУКТА close
Благодарим ви, че изпратихте съобщението си. Ние ще отговорим възможно най-скоро.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед
изпратете запитване

Добави към списъка с желания

Трябва да сте влезли

Fuse insert
Nominal voltage: 250 V,
nominal current: VDE 0820 T2/IEC 257
Power loss 1,5 W
   - 6,3 A with single joint
   - 4 A with serial joints

sygnalizer (24 V): Glowing colour red
     Current consumption: 10,3 mA
sygnalizer . (220 V): lowing colour red
     Current consumption: 0,3 mA
  WK 4 TKG...SIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,3*)
Data UL
No. 22-10 AWG
   300 V*) 10
Data CSA
No. 20-10 AWG
   250 V*) 6,3
Construction width.     insulation length
6 mm
   9 mm

Certificates
  Type Catalogue number Package
Disconnectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.
Si ST
 Z1.299.4055.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST LED
 Z1.299.4155.0 10
Base for fuse with nominal signal (24V)
colour: grey
Si ST GL
 Z1.299.4255.0 10
Diode insert J... = 10 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert diode                    J... = 1 A
colour: grey

Diode insert with bridge j _10A
colour: grey

Disconectable with knife
colour: grey

  colour: blue.
- with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10
  colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6. Single short circuit switch cover

7. Separate plate




         )
nbsp]              katoda        )
  WK 4 TKG...DIST
EN 60 947-7-1/DIN VDE 0611Teil 1
 cord wire V A
EN 60 127-6/DIN VDE 0820 T6
0,5 - 4 mm2
 0,5 - 6 mm2 800 V/8 kV/3
Data UL
No. 22-10 AWG
   300 V 10
Data CSA
No. 20-10 AWG
   250 V 6,3
Construction width.     insulation length
6 mm
     9 mm

Certificates
  Type Catalogue number Package
Disconectable joint
colour: grey
WK 4 TKG/U
 57.504.4055.0 100
Base for fuse 5 x 20
colour: blue.

Base for fuse with nominal signal (24V)
colour: grey

Base for fuse with nominal signal (220V)
colour: grey

Diode insert J... = 10 A
colour: grey
DIST...
 Z1.299.3055.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1N 4007-11)
 Z1.299.3155.0 10
Diode insert diode                    J... = 1 A
colour: grey
DIST-1 N 4007-22)
 Z1.299.3355.0 10
Diode insert with bridge j _10A
colour: grey
DIST-D
 Z1.299.3255.0 10
Disconectable with knife
colour: grey


colour: blue.

with two sockets
colour: grey

with separate plate, without sockets
colour: grey

with socket from both sides
colour: grey

Throughout connector
colour: grey


Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE2/U
 Z5.523.5653.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey
AP4TK
 07.311.6155.0 10

colour: blue.
   07.311.8155.0 10
4. Separate plate 1,5 mm
colour: grey
IVB1WK4..-2
 Z7.255.4227.0 10

colour: blue.
IVB1 WK4..-6
 Z7.255.4627.0 10
5. Insulated bridge
2-pole.


do 6-pole.

6.Single short circuit switch cover

7.
Separate plate










  WK 4 ThSI 5.../U
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 6,31)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 6,3
Construction width.     insulation length
8 mm
     8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 5...U
 57.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 5 LED 12 U
 57.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 5 LED 24 U
 57.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 5 LED 60 U
 57.904.5655.0 50
-with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 5 GL 250 U
 57.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 5 GL 500 U
 57.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

-with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover















  WK 4 ThSI 6,3..AI
  cord wire V A
EN 60 947-7-1, EN 60 127-6
0,5-4 mm2
 0,5-6 mm2 800V/8kV/3*) 102)
Data UL
No. 22-10 AWG
   600 V*) 15
Data CSA
No. 22-10 AWG
   600 V*) 10
Construction width.     insulation length
10 mm
   8 mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK4/THSi 6,3...U
 67.904.5355.0 50
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK 4/THSi 6,3 LED 12 U
 67.904.5455.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK 4/THSi 6,3 LED 24 U
 67.904.5555.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK 4/THSi 6,3 LED 60 U
 67.904.5655.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK 4/THSi 6,3 GL 250 U
 67.904.5755.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA
WK 4/THSi 6,3 GL 500 U
 67.904.5855.0 50
Fuse joint
colour: yellow

- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm

- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)

- z with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]


colour: grey

Equipment

1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
35x27x7,5 EN 50022
 98.300.0000.0 1
Assembly bus 35, bus. height. 15 mm
L = 2 m
35x24x15 EN 50022
 98.360.0000.0 1
Assembly bus32, busG
L = 2 m
9006 EN 50035 G-32
 98.190.0000.0 1
2. Closing slat ze stopką U
width. 10 mm
WE1/U
 Z5.523.5753.0 100
Closing slat TS 35 with screw
width. 8 mm
9708/2 S 35
 Z5.522.8553.0 100
Closing slat TS 32 with screw
width. 7,5 mm
9708
 Z5.522.7053.0 100
3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover







Type WK




  WK 10/SI.../U
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint Base joint
colour: grey
WK10/SiU5x202)-8)9)10)
 57.910.5055.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x252)-8)9)10)
 57.910.5155.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WK10/SiU5x302)-8)10)
 57.910.5255.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x321)-8)10)
 57.910.5355.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1

-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat ze stopką U
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

non insulated
2-pole.


3-pole.


do 6-pole.

5. Transparent cover










  WK 10/SI.../U mit Kennmelder
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10 mm2
 1-16 mm2 500V/6kV/3*) 10*)
Data UL
No. 22-6AWG
   600 V*) 15
Data CSA
No. 16-6 AWG
   600 V*) max. 15
Construction width.     insulation length
12 mm
     13mm

Certificates
  Type Catalogue number Package
Fuse joint base joint
colour: grey
WK10/SiU5x20M,NGL2)-6)7)8)
 57.910.5455.0
- with LED 5-12 V ~/=- current consumption
2,3-7 mA
WK10/SiU5x20M,GLB2)-6)7)8)
 57.910.5855.0 50
- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA
WKIO/Si U B.3x32M, NGL1)-6)8)
 57.910.5755.0 50
- with LED 24 - 60 V~/™ current consumption
1,5-4 mA
WK10/SiU6,3x32M,GLB1)-6)8)
 57.910.6155.0 50
- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA

- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: żółta
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
   Z7.287.0327.0 10
Assembly bus32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm
   VDE           CSA UL
Closing slat TS 32 with screw
width. 7,5 mm
57.910.5453.0

3. Closing plate 1,5 mm
colour: grey
nominal signalizer
 -250 V ~     500 V 150 V
4. short circuit switch, E-Cu
current consumption 0.16-0,8 mA9)
57.910.5853.0

non insulated
2-pole.
nominal signalizer         2
 8 V~          28 V 28 V

3-pole.
current consumption 24 mA10)


do 6-pole.
57.910.5753.0

5. Transparent cover
nominal signalizer
 -500 V ~     500 V 150 V

current consumption 0,16-0,8 mA9)
57.910.6153.0


nominal signalizer
 8 V~          28 V 28 V

current consumption 24 mA10)






  WK 10/SI U D
  cord wire/multiwire V A
EN 60 947-7-1, EN 60 127-6
1-10mm2
 1-16mm2 500V/6kV/3 57
Data UL
No. 22-6 AWG
   600 V 50
Data CSA
No. 16-6 AWG
   600 V 65
Construction width.     insulation length
12 mm
     13 mm

Certificates

<tr clas
  Type Catalogue number Package
Fuse joint base joint
colour: grey

- with LED 5-12 V ~/=- current consumption
2,3-7 mA

- with LED 12 - 24 V ~/= current consumption
2,8-6,2 mA

- with LED 24 - 60 V~/™ current consumption
1,5-4 mA

- with bulb 110 - 250 V~/= current consumption
0,13 - 0,55 mA
WK10/SiUD
 57.910.4955.0 50
- with bulb 380 - 500 V~/~ current consumption
0,2 - 0,3 mA

Fuse joint
colour: yellow
35x27x7,5 EN 50022
 98.300.0000.0 1
- with screw in cover A Dl N 41674
fuse insert G DIN 41571,250 V, 5x20 mm
35x24x15 EN 50022
 98.360.0000.0 1
- with screw in cover B DIN 41674
fuse insert G DIN 41576,250 V, 5x25 mm
9006 EN 50035 G-32
 98.190.0000.0 1
-with screw in cover A DIN 41674
fuse insert G 500 V, 1/4 x 1/4"(6,3x32 mm)
WE1/U
 Z5.523.5753.0 100
- with screw in cover
fuse insert 500 V, 1/4 x 11/4" (6,3 x 32 mm]
9708/2 S 35
 Z5.522.8553.0 100

colour: grey
9708
 Z5.522.7053.0 100
Equipment
AP 10/Si
 07.311.4155.0 10
1. Assembly bus 35, bus. height. 7,5 mm
L = 2 m
VBWK10/Si-2
 Z7.287.0227.0 10
Assembly bus 35, bus. height. 15 mm
L = 2 m
VBWK10/Si-3
 Z7.287.0327.0 10
Assembly bus 32, busG
L = 2 m
VBWK10/Si-6
 Z7.287.0627.0 10
2. Closing slat
width. 10 mm
   04.312.2056.0 100
Closing slat TS 35 with screw
width. 8 mm

Closing slat TS 32 with screw
width. 7,5 mm

3. Closing plate 1,5 mm
colour: grey

4. short circuit switch, E-Cu

По-малко
Прочетете още
Коментари (0)
