Аксесоари за източници на инфрачервена светлина
  • Аксесоари за източници на инфрачервена светлина

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Dr. Fischer

Аксесоари за източници на инфрачервена светлина





Dimensions [mm]




Reflector Power
[W]		 Application Surface Dimensions
[mm]
A B C
IRZ500 500 IRK13169Z/98 soft 230 170 120
IRZ1000 1000 IRK13195Z/98 IRK13713Z/98 soft 360 300 250

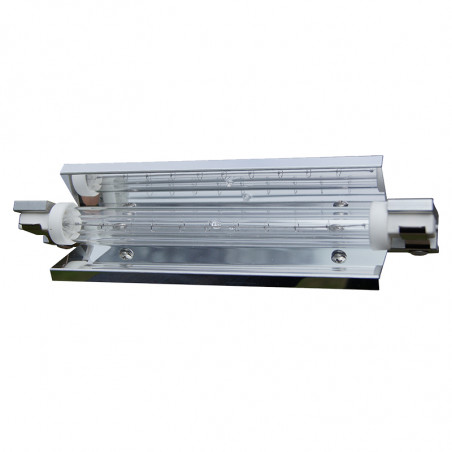

IR3 Reflector




Dimensions [mm]




Reflector Power
[W]		 Application Surface Dimensions
[mm]
A B C
IR3 236*98 500 IRK13169Z/98 crimping 236 196 215
IR3 366*98 2000 IRK13213Z/98F IRK13168Z/98 IRK13195Z/98 IRK13713Z/98 crimping 366 326 345


GRIP FOR RADIATORS „X” AND „X/98”


Dimensions [mm]
 7646/00



GRIP FOR RADIATORS  „Z” AND „Z/98”


Dimensions [mm]
 6707

POWER REGULATOR


RM-1F 30 RM-1FV 18

Technical data

Nominal current RM1F 30 - 30A
RM1FB18 - 18A
Power supply: 230V lub 400V, 50Hz
Usage category AC-51, AC-55a, AC-55b ,AC-56a
Power supply tolerance: +10% + -15%
Power regulation 0÷100%
Control signals: 0÷10V, 4+20mA, external potentiometer, RS485
Thyristor control phase
Control method remote - input control signal
local - button control +/K- or external potentiometer
Visualization: Display LED 2 digits:: power in %
Over voltage protection RC circuit
Short circuit protection ultra fast fuse
Cooling natural
IP: IP20
Insulation voltage 2500V
Impurity level 3
Temperature range 0 + 40°C
Storage temperature -20 + 60°C
Humidity <85%
Height above sea level < 1000 m
Weight 1,2 kg
Dimensions RM1F30 160 x 90 x 110 mm
RM1FB18 160 x 90 x 103 mm
Main circuit clamps screw  M4
