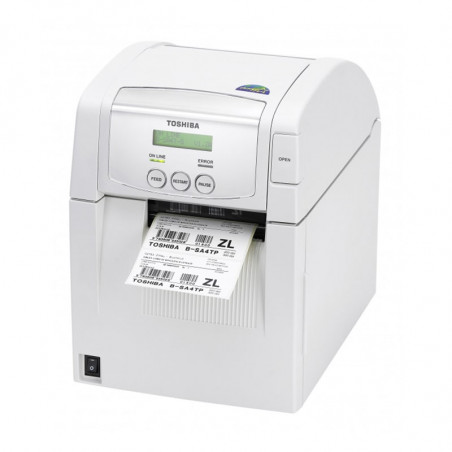

![Полуиндустриален принтер B-SA4TP Полуиндустриален принтер B-SA4TP](https://www.dacpol.eu/29233-large_default/poluindustrialen-printer-b-sa4tp.jpg)
![Полуиндустриален принтер B-SA4TP Полуиндустриален принтер B-SA4TP](https://www.dacpol.eu/29233-large_default/poluindustrialen-printer-b-sa4tp.jpg)
Трябва да сте влезли в
Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Technical data
|
|
---|---|
Printing technology
|
Thermal
|
Type of printhead
|
Flat
|
Printing width
|
13 - 108 mm
|
Printing length
|
10 - 609,6 mm
|
Label backing width
|
112 mm
|
Resolution
|
203 dpi
|
Printing speed
|
Up to 127 mm/s
|
Memory
|
2 MB DRAM, 1 MB Flash
|
Supported barcodes
|
Code 39, Code 39C, Code 93, Code 128 UCC, Code 128, Code 11,
Codebar, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN i UPC 2(5) MSI, ITF, Plessey, Postnet, RSS |
Supported 2D codes
|
Data Matrix, PDF 417, Maxicode, QR Code, Micro PDF 417
|
Interfaces
|
Serial port, LPT, USB 1.1
|
Dimensions
|
200 (W) x 169 (H) x 230 (D) mm
|
Additional options
|
Blade - partial clipping, blade - full clipping, memory,
label peel-off module, external LAN port |
Weight
|
2 kg (not including labels and power supply)
|
Consumables | |
Paper roll - internal diameter
|
25,4 - 76,2 mm
|
Paper roll - external diameter
|
127 mm / 214 mm with external label feeder
(inward- and outward-facing rolls available) |
Thermal paper thickness
|
0,06 - 0,19 mm
|
B-SA4TP
Thermal and thermal transfer semi-industrial printer |
|||||||
---|---|---|---|---|---|---|---|
Model | Description | Printing resolution (dpi) | Max. printing speed (mm/s) | Max. printing width (mm) | LPT | USB | LAN |
B-SA4TP-GS12-QM-R
|
Printhead 203 dpi
|
203 | 104 | 105,7 | V | V | V |
B-SA4TP-TS12-QM-R
|
Printhead 300 dpi
|
305 | 152,4 | 105,7 | V | V | V |
B-SA4TP - options
|
|||||||
B-SA204P-QM-R
|
Blade
|
||||||
B-SA904P-H-QM-R
|
Label peel-off module
|
||||||
B-SA704-RS-QM-R
|
Serial port
|
||||||
B-SA704-WLAN-QM-R
|
WLAN card
|
||||||
B-SA704-IO-QM-R
|
Binary logic module
|
||||||
B-SA704-TPH3-QM-R
|
Printhead 300 dpi
|
||||||
B-SA704-RFID-U1-EU-R
|
UHF RFID module (868 MHz) - in progress
|
||||||
B-SA704-RFID-H1-QM-R
|
HF RFID module (13,56 MHz) - in progress
|
||||||
B-SA704-RTC-QM-R
|
Real-time clock
|
||||||
B-SA4TP - spare parts
|
|||||||
7FM00973000
|
Printhead 203dpi
|
||||||
7FM00973100
|
Printhead 305dpi
|
