Мини охладители на HP от серията TCW 3000 - 4450 W
  • Мини охладители на HP от серията TCW 3000 - 4450 W

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: TEXA industries

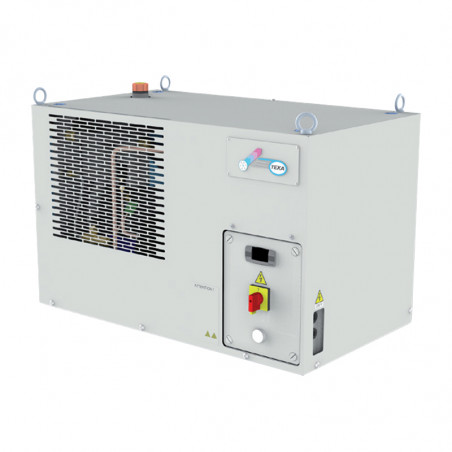

Мини охладители на HP от серията TCW 3000 - 4450 W

Mini industrial coolers, HP TCW 3000- 4450W series


Cooling power range 3000  -  4450 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve.
Temperature control Done by the microprocessor controller TX100, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Technical data


TCW 31  TCW 41
50 Hz 60 Hz 50 Hz 60 Hz
Nominal cooling power [W] 3000 3450 3900 4450
Ambient temperature [°C] +15 ÷ +45
Water temperature [oC] +8 ÷ +25
Cooling liquid R410A
Power supply [V] 230
Power [kW] 1,7 1,7
Pump
Water flow  [l/min] 8,5/20,0 11,0/20,0
Water pressure [bar] 5,8 5,6
Container capacity [l] 10
Water terminal [mm] 10
Weight [kg] 54 54
По-малко
Прочетете още

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас
ПОИСКАЙТЕ ПРОДУКТА close
Благодарим ви, че изпратихте съобщението си. Ние ще отговорим възможно най-скоро.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед
изпратете запитване

Добави към списъка с желания

Трябва да сте влезли

Mini industrial coolers, HP TCW 3000- 4450W series


Cooling power range 3000  -  4450 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R134a.
Evaporator Plate heat exchanger with icing protection.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve.
Temperature control Done by the microprocessor controller TX100, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Technical data


TCW 31  TCW 41
50 Hz 60 Hz 50 Hz 60 Hz
Nominal cooling power [W] 3000 3450 3900 4450
Ambient temperature [°C] +15 ÷ +45
Water temperature [oC] +8 ÷ +25
Cooling liquid R410A
Power supply [V] 230
Power [kW] 1,7 1,7
Pump
Water flow  [l/min] 8,5/20,0 11,0/20,0
Water pressure [bar] 5,8 5,6
Container capacity [l] 10
Water terminal [mm] 10
Weight [kg] 54 54
