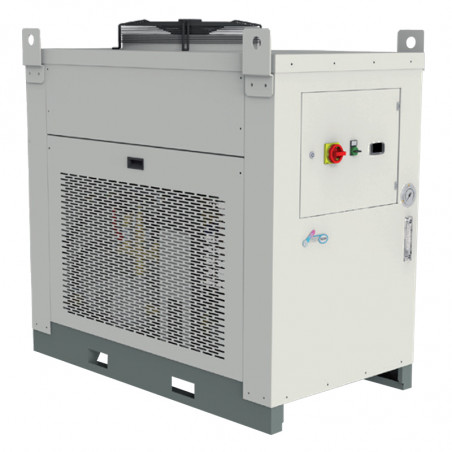

Охладители, чилери за охлаждане на вода серия 3 TCW
  • Охладители, чилери за охлаждане на вода серия 3 TCW

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: TEXA industries

Охладители, чилери за охлаждане на вода серия 3 TCW

Chillers for water cooling series 3 TCW


Cooling power range 12300 - 20700 W
Casing Steel, covered with polyester, colour RAL 7035, casing is removable.
Compressor Hermetically closed compressor with thermal protection and oil level indicator.
Cooling circuit Stub pipe for cooling liquid refill, filter, high pressure switch, cooling liquid R410a.
Evaporator Plate heat exchanger with icing protection and differential pressure switch.
Condenser High efficient, spiral exchanger with ribs, protected with steel net.
Axial fan Protected thermally and with metal net.
Hydraulic circuit Consist of electric pump, plastic water container, valve, manometr 0-10 bar. Evaporator is protected with flow sensor.
Temperature control Done by the microprocessor controller TX200, which allows for water temperature control as well as setting of the alarms, lights and turning device on/off.

Dimensions


Chłodnice, Chillery do chłodzenia wody serii 3 TCW wymiar

Technical data

Type TCW A2 TCW A4 TCW A7 TCW A9
Nominal cooling power [W] 12300 16400 17800 20700
Ambient temperature range [°C] +15 ÷ +45
Water temperature range [°C] +8 ÷ +45
Cooling liquid R410A
Power supply [V/Hz] 400 3f / 50
Power [W] 6100 7800 8000 8800
Pump
Water flow [l/min] 35,0/80,0 46,0/80,0 50,0/80,0 58,0/80,0
Water pressure [bar] 2,9 2,7 2,6 2,5
Container capacity [l] 150,0
Water terminal BPS 1"
Weight[kg] 250,0 255,0 265,0 270,0
