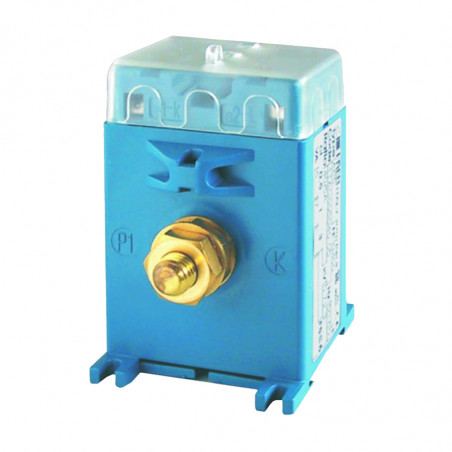

TAC005 ток трансформатор с първична намотка
  • TAC005 ток трансформатор с първична намотка

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FRER

TAC005 ток трансформатор с първична намотка

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 60 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
max. power dissipation (max range value) <2W
Operating temperature -25 +50o C
Storage temperature -40 +80o C
Manufactured according to

IEC/E N 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
5/5 A 5 7

TAC005005X05
10/5 A 5 7

TAC005010X05
15/5 A 5 7

TAC005015X05
20/5 A 5 7

TAC005020X05
25/5 A 5 7

TAC005025X05
30/5 A 5 7

TAC005030X05
40/5 A 5 7

TAC005040X05
50/5 A 5 7

TAC005050X05
60/5 A 5 7

TAC005060X05
80/5 A 5 7

TAC005080X05
100/5 A 5 7

TAC005100X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1
5/1 A 5 7

TAC005005X01
10/1 A 5 7

TAC005010X01
15/1 A 5 7

TAC005015X01
20/1 A 5 7

TAC005020X01
25/1 A 5 7

TAC005025X01
30/1 A 5 7

TAC005030X01
40/1 A 5 7

TAC005040X01
50/1 A 5 7

TAC005050X01
60/1 A 5 7

TAC005060X01
80/1 A 5 7

TAC005080X01
100/1 A 5 7

TAC005100X01


Dimensions

Przekładnik prądowy TAC005 z uzwojeniem pierwotnym wymiar Przekładnik prądowy TAC005 z uzwojeniem pierwotnym wymiar
