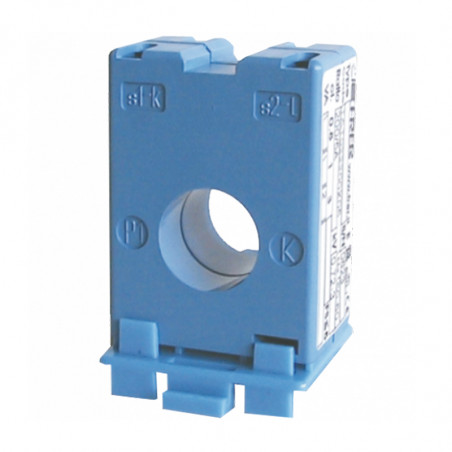

TAT022 ток трансформатор за Ø22 кабел / 20x5mm релса
  • TAT022 ток трансформатор за Ø22 кабел / 20x5mm релса

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FRER

TAT022 ток трансформатор за Ø22 кабел / 20x5mm релса

Technical Data

Thermoplastic material UL94-V0
Operating frequency 50-60Hz
Voltage 0.72kV
Test voltage 3kV * 1’50Hz
Insulation Klasa E
Protection degree IP 20
Continuous overcurrent 1.2In
Rated short-time thermal current (I th) 40 In
Rated dynamic current (I dyn) 2.5 x I th
Safety factor N<5
Maximum power dissipation (max. range value) <2.5W
Operating temperature -25.. +50o C
Storage temperature -40.. +80o C
Manufactured according to

IEC/EN 60044-1,
VDE, BS, UTE
Integrated secondary terminals 6mm2


SECONDARY 5A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
40/5 A     1.2

TAT022040X05
50/5 A     1.2

TAT022050X05
60/5 A     1.5

TAT022060X05
80/5 A   1 2.5

TAT022080X05
100/5 A   1.5 3

TAT022100X05
120/5 A   2 4

TAT022120X05
150/5 A 1 3 5

TAT022150X05
200/5 A 1 1.5 2

TAT022200X05
250/5 A 1 1.5 3

TAT022250X05
300/5 A 1 2 4

TAT022300X05
400/5 A 1.5 3 5

TAT022400X05
500/5 A 2 4 6

TAT022500X05
600/5 A 2.5 5 7

TAT022600X05

SECONDARY 1A

Ratio Burdens
[VA]		 Code
cl. 0.5 cl. 1 cl. 3
40/1 A     1.2

TAT022040X01
50/1 A     1.2

TAT022050X01
60/1 A     1.5

TAT022060X01
80/1 A   1 2.5

TAT022080X01
100/1 A   1.5 3

TAT022100X01
120/1 A   2 4

TAT022120X01
150/1 A 1 3 5

TAT022150X01
200/1 A 1 1.5 2

TAT022200X01
250/1 A 1 1.5 3

TAT022250X01
300/1 A 1 2 4

TAT022300X01
400/1 A 1.5 3 5

TAT022400X01
500/1 A 2 4 6

TAT022500X01
600/1 A 2.5 5 7

TAT022600X01


Dimensions

Przekładnik prądowy TAT022 na kabel Ø22/ szynę 20x5mm wymiary
