Текущи трансформатори с първична намотка RM60-D
  • Текущи трансформатори с първична намотка RM60-D

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: ELEQ

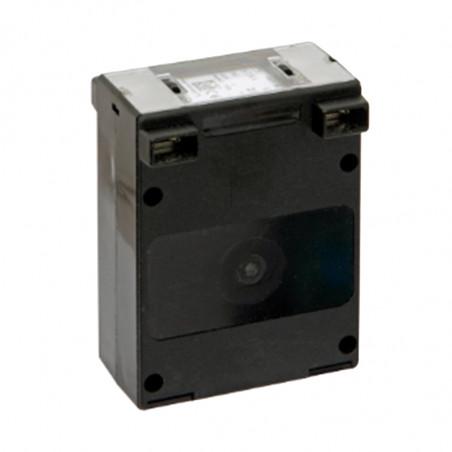

Текущи трансформатори с първична намотка RM60-D

RM series is a low-voltage current transformers.

Properties:
  • secondary currents 5A or 1A in class 1 and 3;
  • primary current up to 30A, 50/60Hz;
  • mounted to base with special terminals ;
  • black, polycarbonate housing;
  • terminals of primary and secondary circuit protected by cover;
  • KEMA EUR certification.

Applications:

  • operating with ammeters (analog and digital);
  • operating with current recorders;
  • operating with power meters, power factor meters;
  • operating with relays, transducers and energy meters.

Specifications:

Applicable standards IEC 60044-1
Short circuit current 60 x In/1s
Continuous current 1 x In
Insulation level 0,72/3/-kV
Operating frequency 50/60Hz
Insulation class E
Connecting of secondary circuit Zaciski
Mounting Wnętrzowy
Ambient temperature -5°C do +40°C
Ambient humidity 5% do 85%, bez kondensacji
Protection degree IP20

Models:

Secondary current 5A
Class 1 3 Part
numbery
Primary current
[A]		 CT load
[VA]
1 5 7,5

4M2011N
1,5 5 7,5

4M2012N
2,5 5 7,5

4M2013N
4 5 7,5

4M2014N
5 5 7,5

4M2015N
6 5 7,5

4M2016N
10 5 7,5

4M2017N
15 5 7,5

4M2018N
20 5 7,5

4M2019N
25 5 7,5

4M2020N
30 5 7,5

4M2021N
Secondary current 5A
Class 1 3 Part
number
Primary current
[A]		 CT load
[VA]
1 5 7,5

4M2000N
1,5 5 7,5

4M2001N
2,5 5 7,5

4M2002N
4 5 7,5

4M2003N
5 5 7,5

4M2004N
6 5 7,5

4M2005N
10 5 7,5

4M2006N
15 5 7,5

4M2007N
20 5 7,5

4M2008N
25 5 7,5

4M2009N
30 5 7,5

4M2010N

Dimensions [mm]

Wound primary current transformers RM60-D
