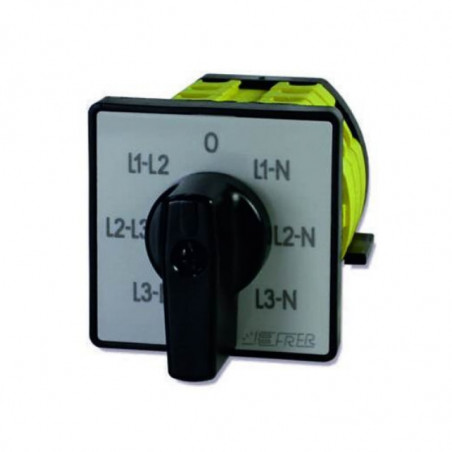

Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Technical data
Thermal rated current | 12A |
---|---|
Rated voltage | 600V |
Insulation voltage | 660V |
Impulse withstand voltage | 4 kV |
Operating temperature | -10.. +70 °C |
Storage temperature | -30…+70°C |
Screw terminals | M3 2x2,5 mm2 |
Protection degree | IP 42 (L48E...) IP 20 (L52E...) |
Manufactured according to | CEI EN-DIN VDE-IEC |
Test voltage | 2 kV 50 Hz x 60s |
Type | 48x48 | DIN RAIL | |
---|---|---|---|
Voltage | Phase-Phase (4 position) |
L48EV3 |
L52EV3 |
Phase - phase / phase - neutral (7 position) |
L48ET3 |
L52ET3 |
|
Current | Single-pole for 3 CT’s (4 position) |
L48EA |
L52EA |
Description
Generally used in three-phase systems to allow the reading of the tapered and / or phase voltages on a single voltmeter, or of the currents on a single ammeter.
Dimensions and installation
Wiring diagram
