Железопътни и промишлени преобразуватели DC / DC с 1000W сила

The CRS-1000 is a reliable 1000W DC/DC converter series with a compact and robust design. It fits in a wide range of industrial applications that require high wattage, and has been designed according to EN50155 for railway and transportation systems.

The CRS-1000 series delivers 1000W at 24, 48, 72 and 110V and offers a great variety of input-ouput convinations. This converter series also allows for parallel connection. In addition, it offers options such as ORing FET, hold up time of 10ms, active protection against input reverse polarity, active inrush current limiter, and different cooling options.

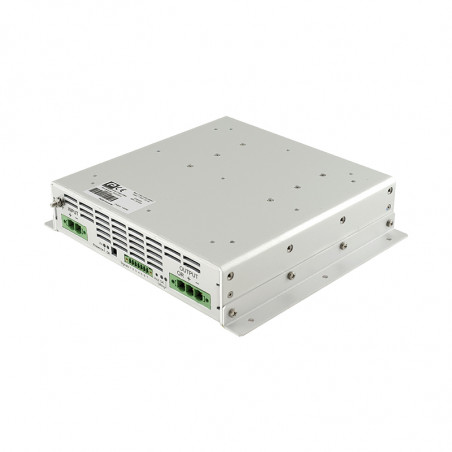

The CRS-1000 has been designed with mounting brackets to be installed on a chassis and exhibits a closed anodized aluminum housing and offers different cooling options (fan, fan redundancy, convection and conduction cooling). Models in this series offer up to 94% efficiency at full load depending on input/output.

• ORing FET option
• High input-output isolation
• Adjustable output voltage
• Remote sensing
• Remote inhibit
• Input [&] Output OK LEDs
• Output failure alarm
• Input reverse polarity protection
• Different cooling options
• According to the standard EN50155
• Fire and smoke: EN45545-2 approved
• Efficiency up to 94%

• 3 years for Industrial version
• 5 years for Railway version

• Power mating connector (input)
• Power mating connector (output)
• Signals mating connector
• Guiding plates for 6U subrack mounting
• Front brackets for 6U subrack mounting and 19″ rackmount tray kit (2U)
