Спирала, медна жица (единична)
  • Спирала, медна жица (единична)

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: WeSiTec eK

Спирала, медна жица (единична)

For use in hazardous areas according to DIN EN 60079-14

General Information

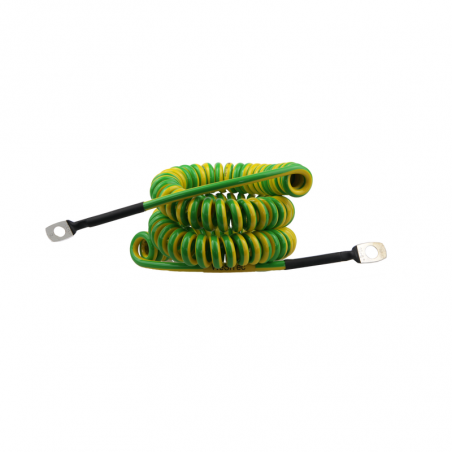

The copper spiral cables from WeSiTec offer extremely high flexibility. The copper core used consists of 226 individual copper strands, which minimize the risk of cable breakage. The cable coating protects well against acids, alkalis, mineral oils, greases and other chemicals. The spiral cables meet all requirements of the standards DIN EN 60079-0 and DIN EN 60079-14 and may be used accordingly in explosive areas. The spiral cables are free of silicone.

Technical Data

Cable type: LIF11Y11Y, 226x0,15mm
Cable color: green/yellow
Cross section: 4 mm 2 / 2,5 mm 2
Wire type: copper
Ambient temperature: -40°C...+80°C
Side A + B: each 150 mm tangent

The cable ends can be assembled with eyelets at no extra charge.

По-малко
Прочетете още

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас
ПОИСКАЙТЕ ПРОДУКТА close
Благодарим ви, че изпратихте съобщението си. Ние ще отговорим възможно най-скоро.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед
изпратете запитване

Добави към списъка с желания

Трябва да сте влезли

For use in hazardous areas according to DIN EN 60079-14

General Information
The copper spiral cables from WeSiTec offer extremely high flexibility. The copper core used consists of 226 individual copper strands, which minimize the risk of cable breakage. The cable coating protects well against acids, alkalis, mineral oils, greases and other chemicals. The spiral cables meet all requirements of the standards DIN EN 60079-0 and DIN EN 60079-14 and may be used accordingly in explosive areas. The spiral cables are free of silicone.

Technical Data

Cable type: LIF11Y11Y, 226x0,15mm
Cable color: green/yellow
Cross section: 4 mm 2 / 2,5 mm 2
Wire type: copper
Ambient temperature: -40°C...+80°C
Side A + B: each 150 mm tangent

The cable ends can be assembled with eyelets at no extra charge.
