Производител: TEMAS

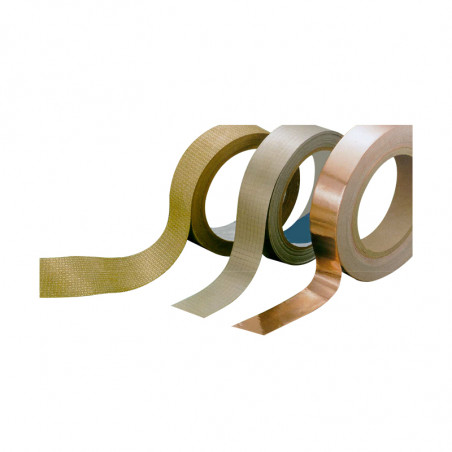

Проводими ленти за фолио

Conductive foil

Temas engineeringprovides a variety of conductive materials that can be used for shielding and grounding. These materials can be supplied with conductive or non-conductive adhesive. Most of materials can be customer designed. Please ask for newest available solutions.

Przewodzące taśmy foliowe


Specifications

Product Backing Temp. [°C] Thickness of Backing
[mm]		 Total Thickness
[mm]		 Tensile Strength
[N/mm]		 Adhesion Strength
 [N/mm]		 Resistance
[ohm/25mm2]		 Conductive Adhesive

CF.8268

 Non-woven -40 to 121 0.15 to 0.48 0.52 3.2 0.44 0.005 +

CF.8235

 Fabric -40 to 121 0.15 0.17 8.8 0.38 --- ---

CF.8260

 --- -40 to 149 --- 0.05 --- 0.54 0.002 +

*CF.8269

 Fabric -40 to 121 0.1 0.15 1.8 0.27 0.003 +

*CF.8812

 Aluminium Foil -30 to 155 0.05 0.1 2.8 0.39 0.009 +

*CF.8837NA

 Copper Foil -30 to 155 0.025 0.08 3.5 0.44 --- ---

*CF.8837H

 Copper Foil -30 to 155 0.038 0.089 4.4 0.44 0.003 +

CF.8839

 Tin Clad
Copper Foil		 -30 to 155 0.038 0.089 4.4 0.44 0.003 +

CF.8699

 Copper Foil -40 to 121 0.025 0.125 4.4 0.33 0.002 +

*CF.1035

 Pet/Al Foil 130 0.038 0.09 2.6 0.44 0.003 +
* UL Certification
