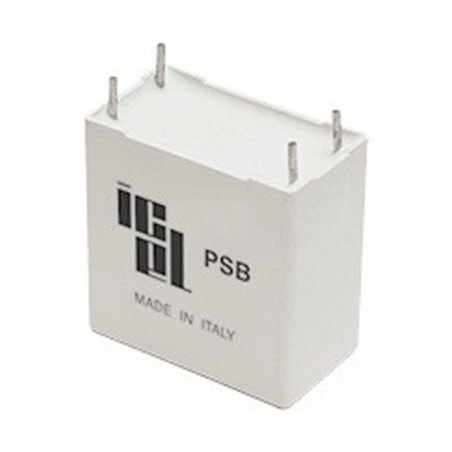

PSB / RSB - полипропиленови кондензатори

Main applications

  • Snubber capacitor for energy conversion and control in power semiconductor circuits, resonant circuits, protection circuits in SMPSs, induction heaters
  • High voltage, high current and high pulse applications


Execution and reference standard

  • Extended double side metallized carrier film with internal series connection and metallized film
  • Box with multiple (2, 4 or 6) radial terminals
  • UL 94 V-0, flame retardant execution
  • IEC 61071, IEC 60068, RoHS
PSB/RSB Ur Cn (μF) du/dt (V/μs) Irms max. (A) Nom. size B (mm) x H (mm) x L (mm) Pitch  (mm)
700 Vdc (380/420 Vac) 0.1 ÷ 12 285 ÷ 1200 4 ÷ 38 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
850 Vdc (500 Vac) 0.068 ÷ 8 360 ÷ 1550 4 ÷ 38 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
1000 Vdc (575 Vac) 0.047 ÷ 6 450 ÷ 1800 3.5 ÷ 37.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
1200 Vdc (630 Vac) 0.033 ÷ 4.7 500 ÷ 2000 3 ÷ 37.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
1500 Vdc (650 Vac) 0.022 ÷ 3.3 575 ÷ 2500 2.5 ÷ 32.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
2000 Vdc (700 Vac) 0.015 ÷ 2.2 725 ÷ 3600 2 ÷ 34.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
2500 Vdc (725 Vac) 0.0068 ÷ 1.5 930 ÷ 4900 1.5 ÷ 30.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
3000 Vdc (750 Vac) 0.0047 ÷ 1 1150 ÷ 6300 1.5 ÷ 27.5 7x16x26.5 ÷ 38x57.5x57.5 22.5 ÷ 52.5
