Quattro инвертор / зарядно устройство
  • Quattro инвертор / зарядно устройство

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Victron energy

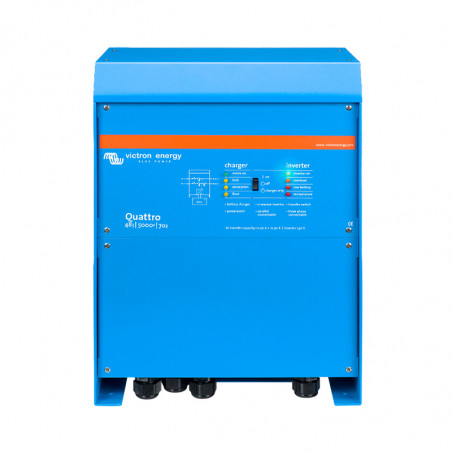

Quattro инвертор / зарядно устройство

3kVA – 15kVA

Quattro 48/5000/70-100/100 Quattro 24/3000/70-50/30
Quattro 48/5000/70-100/100 Quattro 24/3000/70-50/30


Two AC inputs with integrated transfer switch
The Quattro can be connected to two independent AC sources, for example the public grid and a generator, or two generators. The Quattro will automatically connect to the active source.

Two AC Outputs
The main output has no-break functionality. The Quattro Yeses over the supply to the connected loads in the event of a grid failure or when shore/generator power is disconnected. This happens so fast (less than 20 milliseconds) that computers and other electronic equipment will continue to operate without disruption. The second output is live only when AC is available on one of the inputs of the Quattro. Loads that should not discharge the battery, like a water heater for example, can be connected to this output.

Virtually unlimited power thanks to parallel operation
Up to 6 Quattro units can operate in parallel. Six units 48/10000/140, for example, will provide 54kW / 60kVA output power and 840 Amps charging capacity. .

Three phase capability
Three units can be configured for three phase output. But that’s not all: up to 6 sets of three units can be parallel connected to provide 162kW / 180kVA inverter power and more than 2500A charging capacity.

PowerControl – Dealing with limited generator, shore side or grid power
The Quattro is a very powerful battery charger. It will therefore draw a lot of current from the generator or shore side supply (16A per 5kVA Quattro at 230VAC). A current limit can be set on each AC input. The Quattro will then Yese account of other AC loads and use whatever is spare for charging, thus preventing the generator or mains supply from being overloaded.

PPowerAssist – Boosting shore or generator power
Ta cecha pozwala Quattrona chwilowe zwiększenie mocy wyjściowej. Tam, gdzie wysoka moc jest wymagana jedynie przez ograniczony czas, Quattro zapewni, że niewystarczająca moc źródła AC zostanie natychmiastowo uzupełniona przez energię z akumulatorów. Kiedy obciążenie się zmniejsza, dodatkowa moc jest zużywana na ładowanie baterii.

Czterostopniowa adaptacyjna ładowarka z dwoma wyjściami
This feature Yeses the principle of PowerControl to a further dimension allowing the Quattro to supplement the capacity of the alternative source. Where peak power is so often required only for a limited period, the Quattro will make sure that insufficient mains or generator power is immediately compensated for by power from the battery. When the load reduces, the spare power is used to recharge the battery.

Solar energy: AC power available even during a grid failure
The Quattro can be used in off grid as well as grid connected PV and other alternative energy systems. Loss of mains detection software is available.

System configuring

  • In case of a stand-alone application, if settings have to be changed, this can be done in a matter of minutes with a DIP switch setting procedure.
  • Parallel and three phase applications can be configured with VE.Bus Quick Configure and VE.Bus System Configurator software.
  • Off grid, grid interactive and self-consumption applications, involving grid-tie inverters and/or MPPT

Solar Chargers can be configured with Assistants (dedicated software for specific applications).

On-site Monitoring and control
Several options are available: Battery Monitor, Multi Control Panel, Ve.Net Blue Power panel, Color Control panel, smartphone or tablet (Bluetooth Smart), laptop or computer (USB or RS232).

Remote Monitoring and control
Victron Ethernet Remote, Victron Global Remote and the Color Control Panel. Data can be stored and displayed on our VRM (Victron Remote Management) website, free of charge.

Remote configuring
When connected to the Ethernet, systems with a Color Control panel can be accessed and settings can be change

Inwerter/ładowarka Quattro


Quattro 12/3000/120-50/30
24/3000/70-50/30		 12/5000/220-100/100
24/5000/120-100/100
48/5000/70-100/100		 24/8000/200-100/100
48/8000/110-100/100		 48/10000/140-100/100
PowerControl / PowerAssist Yes
Integrated Transfer switch Yes
AC Input(x2) Input voltage range: 187-265 VAC
Input frequency: 45 – 65 Hz
Power factor: 1
Maximum feed through current [A] 50/30 2x100 2x100 2x100
INWERTER
Input voltage range
[V DC]		 9,5-17V   19-33V   38-66V
Output (1) Output voltage: 230V AC +-2%    Frequency: 50Hz +-0,1%
Cont. output power at 25oC [VA] (3) 3000 5000 8000 10000
Cont. output power at 25oC [W] 2500 4500 7000 9000
Cont. output power at 40oC [W] 2200 4000 6300 8000
Peak power [W] 6000 10000 16000 20000
Maximum efficiency [%] 93 / 94 94 / 94 / 95 94 / 96 96
Zero load power [W] 15 / 15 25 / 25 / 25 30 / 35 35
Zero load power in AES mode[W] 10 / 10 20 / 20 / 20 25 / 30 30
Zero load power in Search mode[W] 4 / 5 5 / 5 / 6 8 / 10 10
CHARGER
Charge voltage 'absorption'
[V DC]		 14,4 / 28,8 14,4 / 28,8 / 57,6 28,8 / 57,6 57,6
Charge voltage ‘float’ [V DC] 13,8 / 27,6 13,8 / 27,6 / 55,2 27,6 / 55,2 55,2
Storage mode [V DC] 13,2 / 26,4 13,2 / 26,4 / 52,8 26,4 / 52,8 52,8
Charge cyrrent house battery[A] (4) 120 / 70 220 / 120 / 70 200 / 110 140
Charge current starter battery [A] 4 (only in 12V and i 24V)
Battery temperature sensore Yes
GENERAL
Auxiliary output [A] (5) 25 50 50 50
Programmable relay (6) 1x 3x 3x 3x
Protection (2) a – g
VE.Bus communication port For parallel and three phase operation, remote monitoring and system integration
General purpose com. port 1x 2x 2x 2x
Remote on-off Yes
Common Characteristics Operating temp.: -40 to +65˚C Humidity (non-condensing): max. 95%
ENCLOSURE
Common Characteristics Material [&] Colour: aluminium (blue RAL 5012) Protection category: IP 21
Battery-connection Four M8 bolts (2 plus and 2 minus connections)
230V AC-connection

Screw terminals 13 mm2(6 AWG)

 Bolts M6 Bolts M6 Bolts M6
Weight [kg] 19 34/30/30 45/41 45
Dimensions (hxwxd in mm) 362 x 258 x 218 470 x 350 x 280
444 x 328 x 240
444 x 328 x 240		 470 x 350 x 280 470 x 350 x 280
STANDARDS
Safety EN 60335-1, EN 60335-2-29
Emission, Immunity EN55014-1, EN 55014-2, EN 61000-3-3, EN 61000-6-3, EN 61000-6-2, EN 61000-6-1
  1. Can be adjusted to 60 HZ; 120 V 60 Hz on request
  2. Protection key
  3. Output short cicuit
  4. Overload
  5. Battery voltage too high
  6. Battery voltage too low
  7. Temperature to high
  8. 230V AC on inverter outpur
  9. Input voltage ripple too high
  1. Non-linear loda crest factor 3:1
  2. At 25oC ambient
  3. Switches off when no external AC source available
  4. Programmable relay that can a.o. be set for general alarm, DC under voltage or genset start/stop function
AC  rating: 230V/4A
DC rating: 4 A up to 35 VDC, 1 A up to 60 VDC

Example symbols

QUA123020010

QUA125020000

QUA243020010

QUA245021011

QUA248020010

QUA485021010

QUA485021011

QUA488024000

QUA481030010

QUA483150000
