Тороидални ядра
  • Тороидални ядра

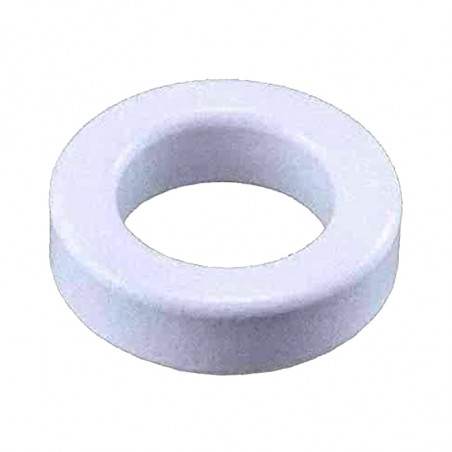

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: FERROXCUBE

Тороидални ядра

Ferrite toroids (ring cores)

Core type Ve
[mm3]
Ae
[mm2]
Mass
[g]
Datasheets

TC2.5/1.3/0.8

2.7 0.49 0.012 TC251308.pdf

TC2.5/1.3/1.3

4.29 0.76 0.022 TC251313.pdf

TC2.5/1.3/2.5

8.57 1.55 0.044 TC251325.pdf

TC2.5/1.5/0.8

2.21 0.37 0.012 TC251508.pdf

TC2.5/1.5/1

2.94 0.489 0.015 TC25151.pdf

TC3.1/1.3/1.3

6.35 1.06 0.033 TC311313.pdf

TC3.1/1.8/2

9.1 1.26 0.05 TC31182.pdf

TC3.4/1.8/1.3

7.3 0.96 0.035 TC341813.pdf

TC3.4/1.8/2

11.6 1.54 0.06 TC34182.pdf

TC3.4/1.8/2.1

11.5 1.52 0.06 TC341821.pdf

TC3.4/1.8/2.3

14.0 1.83 0.068 TC341823.pdf

TC3.5/1.6/1.3

8.3 1.15 0.043 TC351613.pdf

TC3.5/1.8/1.3

7.87 1.03 0.04 TC351813.pdf

TC3.5/1.8/1.8

11 1.44 0.06 TC351818.pdf

TC3.5/1.8/2

12.4 1.62 0.05 TC35182.pdf

TC3.9/1.8/1.8

14.8 1.83 0.086 TC391818.pdf

TC3.9/1.8/2.5

21.1 2.6 0.12 TC391825.pdf

TC3.9/2.2/1.3

9.2 1.0 0.045 TC392213.pdf

TC4/1.8/0.8

6.43 0.79 0.035 TC41808.pdf

TC4/2/2

16.7 1.92 0.095 TC422.pdf

TC4/2.2/1.1

8.82 0.961 0.04 TC42211.pdf

TC4/2.2/1.3

10.2 1.11 0.05 TC42213.pdf

TC4/2.2/1.6

12.9 1.40 0.06 TC42216.pdf

TC4/2.2/1.8

14.4 1.56 0.07 TC42218.pdf

TC4/2.2/2

16.1 1.75 0.08 TC4222.pdf

TC4.8/2.3/1.3

15.5 1.52 0.09 TC482313.pdf

TC5.8/3.1/0.8

13.2 1.01 0.07 TC583108.pdf

TC5.8/3.1/1.5

26.1 2.00 0.13 TC583115.pdf

TC5.8/3.1/3.2

55.8 4.28 0.31 TC583132.pdf

TC5.9/3.1/3.1

53.8 4.12 0.30 TC593131.pdf

TC6/4/2

30.2 1.97 0.15 TC642.pdf

TC6/4/3

45.2 2.96 0.23 TC643.pdf

TC6.3/3.8/2.5

46.5 3.06 0.23 TC633825small.pdf

TC7.6/3.2/4.8

148 9.92 0.7 TC763248.pdf

TC7.6/3.2/5.2

160 10.6 0.75 TC763252.pdf

TC8.2/3.7/4

144 8.50 0.7 TC82374.pdf

TC9/6/3

102 4.44 0.5 TC963.pdf

TN9/6/3

102 4.44 0.5 TN963.pdf

TX9/6/3

102 4.44 0.5 TX963.pdf

TC9.5/4.8/3.2

144 6.95 0.7 TC954832.pdf

TN10/6/4

188 7.8 0.95 TN1064.pdf

TX10/6/4

188 7.8 0.95 TX1064.pdf

TX13/7.1/4.8

361 12.3 1.8 TX137148.pdf

TN13/7.5/5

368 12.2 1.8 TN13755.pdf

TX13/7.5/5

368 12.2 1.8 TX13755.pdf

TX13/7.9/6.4

434 13.9 2.2 TX137964.pdf

TN14/9/5

430 12.3 2.1 TN1495.pdf

TX14/9/5

430 12.3 2.1 TX1495.pdf

TN14/9/9

774 22.1 3.8 TN1499.pdf

TX14/9/9

774 22.1 3.8 TX1499.pdf

TX16/9.1/4.7

548 14.7 2.7 TX169147.pdf

TN16/9.6/6.3

760 19.7 3.8 TN169663.pdf

TX16/9.6/6.3

760 19.7 3.8 TX169663.pdf

TN19/11/10

1795 40.8 9.2 TN191110.pdf

TN19/11/15

2692 61.2 13.8 TN191115.pdf

TN20/10/7

1465 33.6 7.7 TN20107.pdf

TX20/10/7

1465 33.6 7.7 TX20107.pdf

TX22/14/6.4

1330 24.6 6.5 TX221464.pdf

TX22/14/13

2750 50.7 14 TX221413.pdf

TN23/14/7

1722 30.9 8.4 TN23147.pdf

TN25/15/10

2944 48.9 15 TN251510.pdf

TX25/15/10

2944 48.9 15 TX251510.pdf

TN26/15/10

3360 55.9 17 TN261510.pdf

TX26/15/10

3360 55.9 17 TX261510.pdf

TN26/15/20

6720 112 34 TN261520.pdf

TN29/19/7.5

2700 36.9 13.5 TN291975.pdf

TX29/19/7.5

2700 36.9 13.5 TX291975.pdf

TX29/19/7.6

2600 35.5 13 TX291976.pdf

TN29/19/15

5410 73.9 28 TN291915.pdf

TX29/19/15

5410 73.9 28 TX291915.pdf

TN32/19/13

5820 76.5 29 TN321913.pdf

TX32/19/13

5820 76.5 29 TX321913.pdf

TX36/23/10

5540 61.8 27 TX362310.pdf

TX36/23/15

8440 94.1 40 TX362315.pdf

TX39/20/13

9513 112 45 TX392013.pdf

TX40/24/16

12100 125 62 TX402416.pdf

TX40/24/20

15100 157 77 TX402420.pdf

TX42/26/13

9860 95.8 53 TX422613.pdf

TX42/26/18

13810 134 55 TX422618.pdf

TX50/30/19

22378 186 100 TX503019.pdf

TX51/32/19

21500 172 100 TX513219.pdf

TX55/32/18

26580 202 134 TX553218.pdf

TX58/41/18

23200 152 110 TX584118.pdf

TX63/38/25

46500 306 220 TX633825large.pdf

TX74/39/13

34300 208 170 TX743913.pdf

TX80/40/15

50200 288 240 TX804015.pdf

TX87/54/14

46400 217 220 TX875414.pdf

T87/56/13

42133 194 200 T875613.pdf

TX102/66/15

68200 267 325 TX1026615.pdf

T107/65/18

96200 370 456 T1076518.pdf

TX107/65/18

96200 370 456 TX1076518.pdf

T107/65/25

133000 514 680 T1076525.pdf

T140/106/25

161100 422 800 T14010625.pdf

TX140/106/25

161100 422 800 TX14010625.pdf

T152/104/19

176600 450 878 T15210419.pdf
