Производител: Crydom

Регулатори на мощност и температура

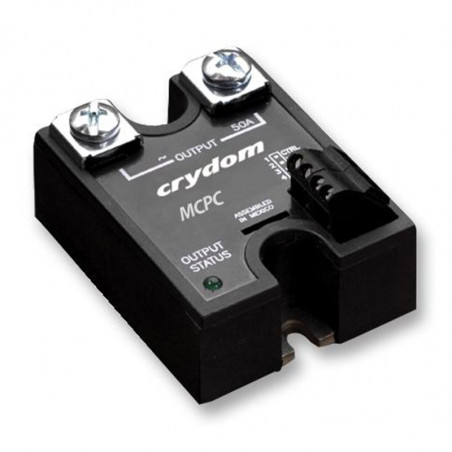

MCPC controllers consist of phase controller and semiconductor relay in standard casing. They can be controlled by voltage, current or by potentiometer. MCPC controllers allow to regulate power from 0 to 100%


General parameters
Dielectric withstand 50/60 Hz, Input / Input / Metal casing
 4000 Vrms
Insulation resistance 500 Vdc
 109 Ohm
Max capacity I/O
 10 pF
Operation temperature range
 20 - 80 °C
Storage temperature range
 40 - 125 °C


Mechanical parameters
Weight 86,5g
Casing material
 Thermo conducting resin
Terminals
                            sterowania
 Screws



Output parameter
  Voltage
24 48
Operation voltage (47-63 Hz) [Vrms]
 180-280 300-530
Overvoltage
 600 1200
Leakage current [mA]
 7 12
Power coefficient
 0,5 0,5
Voltage drop
 1,6 1,6
  Current
25 A 50 A 90 A
Max Load current [Arms]
 25 50 90
Min Load current[mArms]
 150 150 150
Max test current(16,6ms) [Apk]
 250 625 1200
Terminal/casing thermal resistance [°C/W]
 1,02 0,63 0,28
I2t (8,3msec.) [A2s]
 260 1620 6000


Output parameters
  Minimum Typowe Maksimum
Power supply [Vdc] [P1]
 8 12 lub 24 32
Input power [mA]
 28   30
Control signal range - option A [Vdc]
 0,8   5
Control signal range - option B [Vdc]
 1   7
Control signal range - option C [Vdc]
 2   10
Control signal range - option  D [mA]
 4   20
Input impedance. Option A,B,C [Ω] P4
   20K
Input impedance. Option. D [Ω] P4
   220

//
