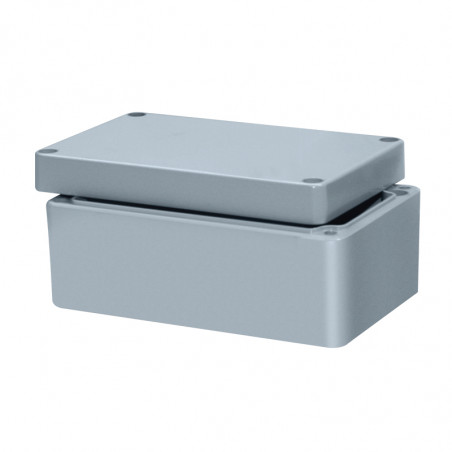

![RJ / AK - IP66 алуминиев корпус RJ / AK - IP66 алуминиев корпус](https://www.dacpol.eu/8036-large_default/rj-ak-ip66-aluminiev-korpus.jpg)
![RJ / AK - IP66 алуминиев корпус RJ / AK - IP66 алуминиев корпус](https://www.dacpol.eu/8036-large_default/rj-ak-ip66-aluminiev-korpus.jpg)
Трябва да сте влезли в
Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Aluminum Standard Enclosures RJ are known for providing complete safety to your electrical equipment. We are well equipped with all the facilities required to modify the standard enclosure as per the customer’s requirement. These customized services include machining, painting, silk screen printing.
Technical information:
Material | Aluminum Alloy (AlSi12) |
---|---|
IP | IP 66 (IP67, IP68 on Request) |
Impact Energy | IK 09 (10 Joules) |
Temperature Range | -40°C to +80°C (Neoprene) -60°C to +140°C (Silicone) -30°C to +150°C (Viton) -55°C to +125°C (EMC) |
Gasket | Neoprene , Silicone, Viton, EMC |
Color | 1. Natural Finish (Pretreated) 2. RAL 7001 (Other colours on Request) |
Part Code No. | External Dimensions (mm) | External Dimensions (inches) | ||||
---|---|---|---|---|---|---|
Length | Width | Height | Length | Width | Height | |
RJ01 | 50 | 45 | 30 | 1.97 | 1.77 | 1.18 |
RJ02 | 98 | 64 | 34 | 3.86 | 2.52 | 1.34 |
RJ03 | 150 | 64 | 34 | 5.91 | 2.52 | 1.34 |
RJ04 | 58 | 64 | 34 | 2.28 | 2.52 | 1.34 |
RJ05 | 75 | 80 | 57 | 2.95 | 3.15 | 2.24 |
RJ06 | 125 | 80 | 57 | 4.92 | 3.15 | 2.24 |
RJ07 | 175 | 80 | 57 | 6.89 | 3.15 | 2.24 |
RJ08 | 250 | 80 | 57 | 9.84 | 3.15 | 2.24 |
RJ09 | 100 | 100 | 81 | 3.94 | 3.94 | 3.19 |
RJ10 | 160 | 100 | 81 | 6.3 | 3.94 | 3.19 |
RJ11 | 122 | 120 | 81 | 4.8 | 4.72 | 3.19 |
RJ12 | 220 | 120 | 90 | 8.66 | 4.72 | 3.58 |
RJ13 | 260 | 160 | 90 | 10.24 | 6.3 | 3.54 |
RJ14 | 360 | 160 | 90 | 14.17 | 6.3 | 3.54 |
RJ15 | 160 | 160 | 91 | 6.3 | 6.3 | 3.54 |
RJ17 | 280 | 230 | 110 | 11.02 | 9.06 | 4.33 |
RJ18 | 330 | 230 | 110 | 12.99 | 9.06 | 4.33 |
RJ19 | 230 | 200 | 110 | 9.06 | 7.87 | 4.33 |
RJ20 | 330 | 230 | 180 | 12.99 | 9.06 | 7.09 |
RJ21 | 220 | 120 | 81 | 8.66 | 4.72 | 3.19 |
RJ22 | 122 | 120 | 91 | 4.8 | 4.72 | 3.58 |
RJ28 | 180 | 180 | 100 | 7.09 | 7.09 | 3.94 |
RJ29 | 280 | 180 | 100 | 11.02 | 7.09 | 3.94 |
RJ30 | 230 | 200 | 180 | 9.06 | 7.87 | 7.09 |
RJ31 | 400 | 310 | 110 | 15.75 | 12.2 | 4.33 |
RJ32 | 400 | 310 | 180 | 15.75 | 12.2 | 7.09 |
RJ33 | 600 | 310 | 110 | 23.62 | 12.2 | 4.33 |
RJ34 | 600 | 310 | 180 | 23.62 | 12.2 | 7.09 |
RJ35 | 400 | 230 | 110 | 15.75 | 9.06 | 4.33 |
RJ36 | 140 | 140 | 90 | 5.51 | 5.51 | 3.58 |
RJ37 | 200 | 140 | 90 | 7.87 | 5.51 | 3.54 |
