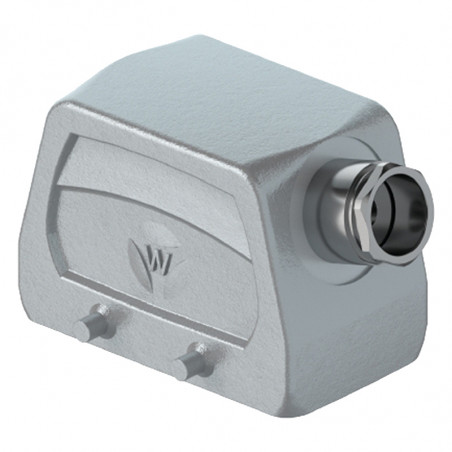

Конектори с две скоби от 10 до 32 полюса
  • Конектори с две скоби от 10 до 32 полюса

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Wieland Polska: złącza, przekaźniki bezpieczeństwa i podzespoły

Конектори с две скоби от 10 до 32 полюса

400 V ~ Gr. C VDE 0627/06.86, 16 A
  6-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.0640.0
        5
    7 mm gilding 10 70.301.0640.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.0640.0
        5
    7 mm gilding   70.311.0640.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.0658.0
        5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.0658.0
        5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.0653.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.0653.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.0653.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.0653.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.0653.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.0653.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.0653.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.0653.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.0653.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.0653.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.0653.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.0653.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.0653.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.0653.0

                10-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.1040.0
        5
    7 mm gilding 10 70.301.1040.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.1040.0
        5
    7 mm gilding   70.311.1040.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.1058.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.1058.0
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.1053.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.1053.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1053.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1053.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.1053.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1053.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1053.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1053.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.1053.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1053.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.1053.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.1053.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.1053.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.1053.0

                16-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.1640.0
        5
    7 mm gilding 10 70.301.1640.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.1640.0
        5
    7 mm gilding   70.311.1640.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.1658.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.1658.0
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.1653.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.1653.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1653.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1653.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.1653.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1653.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1653.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1653.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.1653.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1653.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.1653.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.1653.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.1653.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.1653.0

                24-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.2440.0
        5
    7 mm gilding 10 70.301.2440.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.2440.0
        5
    7 mm gilding   70.311.2440.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.2458.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.2458.0
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.2453.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.2453.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.2453.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.2453.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.2453.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.2453.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.2453.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.2453.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.2453.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.2453.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.2453.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.2453.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.2453.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.2453.0

                32-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10
        5 70.300.3253.0
    7 mm gilding 10
  pin 0,5 - 2,5 mm2 7 mm Nickel 10
        5 70.310.3253.0
    7 mm gilding
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5 70.700.3253.0
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10
500V/6kV/3VDE0110       5 70.500.3253.0
  pin 0,14-2,5 mm2 7 mm Silvered 10
500V/6kV/3VDE0110       5 70.510.3253.0

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10

                48-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.4840.0
        5
    7 mm gilding 10
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.4840.0
        5
    7 mm gilding
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.4858.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.4853.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.4853.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10

Contacts to clamp Version


Ø mm2 Catalogue number Package Ø mm2 Catalogue number Package
  verzinnt     vergoldet
  02.123.7021.0 200 0,5 02.123.7001.0
0,75 - 1 02.123.7121.0 200 0,75-1 02.123.7101.0
  02.123.7221.0 200 1,5 02.123.7201.0
2,5 02.123.7321.0 200 2,5 02.123.7301.0
  02.123.7421.0 200 4 02.123.7401.0
0,5 05.543.7021.0 200 0,5 05.543.7001.0
0,75 - 1 05.543.7121.0 200 0,75-1 05.543.7101.0
1,5 05.543.7221.0 200 1,5 05.543.7201.0
2,5 05.543.7321.0 200 2,5 05.543.7301.0
4 05.543.7421.0 200 4 05.543.7401.0
  95.101.0800.0 1 Silvered na życzenie
  05.502.2100.0 1
  05.502.3300.0 1

to socket
to pin


      Version a
 Version b
IP
55 IP 65 (from gland side] 400 V~ Gr. C VDE 0627/06.86

Cover
Cover
Doesn't consider pin/
socket
with spring contacts
24 poles = 2xM25
Version A Version B

poles quantity thread gland type Dimensions L B H Package Catalogue number Catalogue number
Socket / pin
10-poles + grounding		 M20 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.350.1035.0 70.350.1035.1 70.350.1035.2 70.350.1035.3 70.351.1035.0 70.351.1035.1 70.351.1035.2 70.351.1035.3
M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.353.1035.0 70.353.1035.1 70.353.1035.2 70.353.1035.3
Socket / pin
16-poles + grounding		 M25

0 with gland1 z thread under the gland
2 ring under the gland
3 gland with clamps

   93,5 43 60 1 70.350.1635.0 70.350.1635.1 70.350.1635.2 70.350.1635.3 70.351.1635.0 70.351.1635.1 70.351.1635.2 70.351.1635.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 43 60 1 70.353.1635.0 70.353.1635.1 70.353.1635.2 70.353.1635.3
Socket / pin
24-poles + grounding		 M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.350.2435.0 70.350.2435.1 70.350.2435.2 70.350.2435.3 70.351.2435.0 70.351.2435.1 70.351.2435.2 70.351.2435.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.353.2435.0 70.353.2435.1 70.353.2435.2 70.353.2435.3
Socket / pin
32-poles + grounding		 M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 82,5 94 1 70.350.3235.0 70.350.3235.1 70.350.3235.2 70.350.3235.3
M40 1 z thread under the gland
2 pierścień pod dławik		   93,5 82,5 94 1 70.353.3235.1
70.353 .3235.2

  Version c Version d

  Cover Cover z dźwigniami

  Version C Version D
poles quantity thread gland type Dimensions L B H Package Catalogue number Catalogue number
Socket / pin
10-poles + grounding		 M20 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.352.1035.0 70.352.1035.1 70.352.1035.2 70.352.1035.3 70.355.1035.0 70.355.1035.1 70.355.1035.2 70.355.1035.3
M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.354.1035.0 70.354.1035.1 70.354.1035.2 70.354.1035.3 70.358.1035.0 70.358.1035.1 70.358.1035.2 70.358.1035.3
Socket / pin
16-poles + grounding		 M25

0 with gland1 z thread under the gland
2 ring under the gland
3 gland with clamps

   93,5 43 60 1 70.352.1635.0 70.352.1635.1 70.352.1635.2 70.352.1635.3 70.355.1635.0 70.355.1635.1 70.355.1635.2 70.355.1635.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 43 60 1 70.354.1635.0 70.354.1635.1 70.354.1635.2 70.354.1635.3 70.358.1635.0 70.358.1635.1 70.358.1635.2 70.358.1635.3
Socket / pin
24-poles + grounding		 M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.352.2435.0 70.352.2435.1 70.352.2435.2 70.352.2435.3 70.355.2435.0 70.355.2435.1 70.355.2435.2 70.355.2435.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.354.2435.0 70.354.2435.1 70.354.2435.2 70.354.2435.3 70.358.2435.0 70.358.2435.1 70.358.2435.2 70.358.2435.3
Socket / pin
32-poles + grounding		 M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 82,5 94 1 70.352.3235.0 70.352.3235.1 70.352.3235.2 70.352.3235.3
M40 1 z thread under the gland
2 pierścień pod dławik		   93,5 82,5 94 1 70.354.3235.1 70.354.3235.2

  Version e Version f


Cover
Doesn't consider pin/
socket
with spring contacts 24 poles = 2xM25
 Cover with lever

  Version E Version F

poles quantity thread gland type Dimensions L B H Package Catalogue number Catalogue number
Socket / pin
10-poles + grounding		 M20 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.356.1035.0 70.356.1035.1 70.356.1035.2 70.356.1035.3 70.357.1035.0 70.357.1035.1 70.357.1035.2 70.357.1035.3
M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1   70.359.1035.0 70.359.1035.1 70.359.1035.2 70.359.1035.3
Socket / pin
16-poles + grounding		 M25

0 with gland1 z thread under the gland
2 ring under the gland
3 gland with clamps

   93,5 43 60 1 70.356.1635.0 70.356.1635.1 70.356.1635.2 70.356.1635.3 70.357.1635.0 70.357.1635.1 70.357.1635.2 70.357.1635.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 43 60 1   70.359.1635.0 70.359.1635.1 70.359.1635.2 70.359.1635.3
Socket / pin
24-poles + grounding		 M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.356.2435.0 70.356.2435.1 70.356.2435.2 70.356.2435.3 70.357.2435.0 70.357.2435.1 70.357.2435.2 70.357.2435.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1   70.359.2435.0 70.359.2435.1 70.359.2435.2 70.359.2435.3
Socket / pin
32-poles + grounding		 M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 82,5 94 1
M40 1 z thread under the gland
2 pierścień pod dławik		   93,5 82,5 94 1







      Version a Version b Version c

IP 55
IP 65 (from gland side)
400 V ~ Gr. C VDE 0627/06.86
   Open base

 Closed base with two glands

 Closed base with gland from the center side
Version a Version b Version c

Ilośc poles thread gland type L B H Package Catalogue number Catalogue number Catalogue number
Socket / pin
10-poles + grounding
z thread under the gland		 M20 0 with gland
1thread under the gland

93
94
94

 43
52
52		 28
54,5
54,5

1
1
1

 70.320.1028.0 70.330.1035.0 70.331.1035.0 70.330.1035.1 70.331.1035.1
Socket / pin
16-poles + grounding z thread under the gland		 M25 0 with gland
1thread under the gland		 113
117
117		 43
52
52		 28
56,5 56,5		 1
1
1		 70.320.1628.0 70.330.1635.0 70.331.1635.0 70.330.1635.1 70.331.1635.1
Socket/pin
16-poles + grounding z thread under the gland high execution		 M32 0 with gland
1thread under the gland		 117
117		 52
52		 76,5 76,5 1
1		   73.334.4035.0 73.335.4035.0 73.334.4035.1 73.335.4035.1
Socket/pin
24-poles +grounding
z thread under the gland		 M25 0 with gland
1thread under the gland		 140
144
144

43
52
52

 28
56,5
56,5

1
1
1

 70.320.2428.0 70.330.2435.0 70.331.2435.0 70.330.2435.1 70.331.2435.1
Socket / pin
24-poles +grounding
z thread under the gland high execution		 M32 0with gland
1thread under the gland		 144
144		 52
52		 76,5 76,5 1
1		   73.334.6435.0 73.335.6435.0 73.334.6435.1 73.335.6435.1
Socket/pin
32-poles +grounding
z thread under the gland		     124 84 35 1 70.320.3228.0

      Version d Version e Version f


     Closed base with gland on the bottom Open cover with cover Open cover with cover
Version d Version e Version f
Ilośc poles thread gland type L B H Package Catalogue number Catalogue number Catalogue number
Socket / pin
10-poles + grounding
z thread under the gland		 M20 0 with gland
1thread under the gland

93
94
94

 43
52
52		 28
54,5
54,5

1
1
1

 70.333.1035.0 70.333.1035.1 70.325.1028.0 70.340.1035.0 70.325.1628.0
Socket / pin
16-poles + grounding z thread under the gland		 M25 0 with gland
1thread under the gland		 113
117
117		 43
52
52		 28
56,5 56,5		 1
1
1		 70.333.1635.0 70.333.1635.1 70.343.1035.1 70.340.1635.0 70.340.1635.1
Socket/pin
16-poles + grounding z thread under the gland high execution		 M32 0 with gland
1thread under the gland		 117
117		 52
52		 76,5 76,5 1
1		 73.337.4035.0 73.337.4035.1   73.344.4035.0 70.325.2428.0
Socket/pin
24-poles +grounding
z thread under the gland		 M25 0 with gland
1thread under the gland		 140
144
144

43
52
52

 28
56,5
56,5

1
1
1

 70.333.2435.0 70.333.2435.1 73.347.4035.1 70.340.2435.0 70.340.2435.1
Socket / pin
24-poles +grounding
z thread under the gland wykonanie wysokie		 M32 0with gland
1thread under the gland		 144
144		 52
52		 76,5 76,5 1
1		 73.337.6435.0 73.337.6435.1   73.344.6435.0 73.344.6435.1
Socket/pin
32-poles +grounding
z thread under the gland		     124 84 35 1
      Version g Version h Version i


     Closed base with gland from the bottom Open base with cover Open base with cover
Version g Version h Version i
poles quantity thread gland type L B H Package Catalogue number Catalogue number Catalogue number
Socket / pin
10-poles + grounding
z thread under the gland		 M20 0 with gland
1thread under the gland

93
94
94

 43
52
52		 28
54,5
54,5

1
1
1

 70.341.1035.0 70.340.1035.1 70.342.1035.0 70.341.1035.1 70.343.1035.0 70.342.1035.1
Socket / pin
16-poles + grounding z thread under the gland		 M25 0 with gland
1thread under the gland		 113
117
117		 43
52
52		 28
56,5 56,5		 1
1
1		 70.341.1635.0 70.341.1635.1 70.342.1635.0 70.342.1635.1 70.343.1635.0 70.343.1635.1
Socket/pin
16-poles + grounding z thread under the gland high execution		 M32 0 with gland
1thread under the gland		 117
117		 52
52		 76,5 76,5 1
1		 73.345.4035.0 73.344.4035.1 73.346.4035.0 73.345.4035.1 73.347.4035.0 73.346.4035.1
Socket/pin
24-poles +grounding
z thread under the gland		 M25 0 with gland
1thread under the gland		 140
144
144

43
52
52

 28
56,5
56,5

1
1
1

 70.341.2435.0 70.341.2435.1 70.342.2435.0 70.342.2435.1 70.343.2435.0 70.343.2435.1
Socket / pin
24-poles +grounding
z thread under the gland high execution		 M32 0with gland
1thread under the gland		 144
144		 52
52		 76,5 76,5 1
1		 73.345.6435.0 73.345.6435.1 73.346.6435.0 73.346.6435.1 73.347.6435.0 73.347.6435.1
Socket/pin
32-poles +grounding
z thread under the gland		     124 84 35 1


base Assembly holes (mm) Raster (mm) d1 MI
L1 L2 L3 L4
10 65 83 32 35 4,3 M4
16 85,5 103 32 35 4,3 M4
24 112 130 32 35 4,3 M4
32 112 148 70 81 6,4 M6

base
L5 L6
10 82 40
16 105 45
24 132 45



По-малко
Прочетете още

Изпратете запитване

Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?

Свържете се с нас
ПОИСКАЙТЕ ПРОДУКТА close
Благодарим ви, че изпратихте съобщението си. Ние ще отговорим възможно най-скоро.
ПОИСКАЙТЕ ПРОДУКТА close
Преглед
изпратете запитване

Добави към списъка с желания

Трябва да сте влезли

400 V ~ Gr. C VDE 0627/06.86, 16 A
  6-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.0640.0
        5
    7 mm gilding 10 70.301.0640.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.0640.0
        5
    7 mm gilding   70.311.0640.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.0658.0
        5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.0658.0
        5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.0653.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.0653.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.0653.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.0653.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.0653.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.0653.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.0653.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.0653.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.0653.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.0653.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.0653.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.0653.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.0653.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.0653.0

                10-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.1040.0
        5
    7 mm gilding 10 70.301.1040.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.1040.0
        5
    7 mm gilding   70.311.1040.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.1058.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.1058.0
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.1053.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.1053.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1053.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1053.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.1053.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1053.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1053.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1053.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.1053.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1053.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.1053.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.1053.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.1053.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.1053.0

                16-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.1640.0
        5
    7 mm gilding 10 70.301.1640.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.1640.0
        5
    7 mm gilding   70.311.1640.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.1658.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.1658.0
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.1653.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.1653.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1653.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1653.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.1653.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1653.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.1653.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.1653.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.1653.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.1653.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.1653.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.1653.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.1653.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.1653.0

                24-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.2440.0
        5
    7 mm gilding 10 70.301.2440.0
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.2440.0
        5
    7 mm gilding   70.311.2440.0
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.2458.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.710.2458.0
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.2453.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.2453.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.2453.3

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.2453.3
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10 70.115.2453.3
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.2453.3
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.105.2453.4
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.100.2453.4
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10 70.115.2453.4
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10 70.110.2453.4
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.106.2453.0
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.101.2453.0
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10 70.116.2453.0
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10 70.111.2453.0

                32-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10
        5 70.300.3253.0
    7 mm gilding 10
  pin 0,5 - 2,5 mm2 7 mm Nickel 10
        5 70.310.3253.0
    7 mm gilding
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5 70.700.3253.0
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10
500V/6kV/3VDE0110       5 70.500.3253.0
  pin 0,14-2,5 mm2 7 mm Silvered 10
500V/6kV/3VDE0110       5 70.510.3253.0

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10

                48-poles + grounding
    Wire Section Certificates Insulated length Contacts Package Catalogue number
Contacts Screw
 Socket 0,5 - 2,5 mm2 7 mm Nickel 10 70.300.4840.0
        5
    7 mm gilding 10
  pin 0,5 - 2,5 mm2 7 mm Nickel 10 70.310.4840.0
        5
    7 mm gilding
Contacts clamp
 Socket without contacts 0,5 - 4,0 mm2 7 mm Nickel 10 70.700.4858.0
      5
  pin without contacts 0,5 - 4,0 mm2 7 mm Nickel 10
      5
Contacts springs
 Socket 0,14-2,5 mm2 7 mm Silvered 10 70.500.4853.0
500V/6kV/3VDE0110       5
  pin 0,14-2,5 mm2 7 mm Silvered 10 70.510.4853.0
500V/6kV/3VDE0110       5

Contacts Screw
Contact adapter, long execution

 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10

Socket, grounding
from center

 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5- 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts Screw
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
Socket, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from right		 0,5 - 4,0 mm2 12 mm Nickel 10
pin, grounding
from center		 0,5 - 4,0 mm2 12 mm Nickel 10
Contacts springs
Contact adapter, short execution
 Socket, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
Socket, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from right		 0,5 - 2,5 mm2 9 mm Nickel 10
pin, grounding
from center		 0,5 - 2,5 mm2 9 mm Nickel 10

Contacts to clamp Version


Ø mm2 Catalogue number Package Ø mm2 Catalogue number Package
  verzinnt     vergoldet
  02.123.7021.0 200 0,5 02.123.7001.0
0,75 - 1 02.123.7121.0 200 0,75-1 02.123.7101.0
  02.123.7221.0 200 1,5 02.123.7201.0
2,5 02.123.7321.0 200 2,5 02.123.7301.0
  02.123.7421.0 200 4 02.123.7401.0
0,5 05.543.7021.0 200 0,5 05.543.7001.0
0,75 - 1 05.543.7121.0 200 0,75-1 05.543.7101.0
1,5 05.543.7221.0 200 1,5 05.543.7201.0
2,5 05.543.7321.0 200 2,5 05.543.7301.0
4 05.543.7421.0 200 4 05.543.7401.0
  95.101.0800.0 1 Silvered na życzenie
  05.502.2100.0 1
  05.502.3300.0 1

to socket
to pin


      Version a
 Version b
IP
55 IP 65 (from gland side] 400 V~ Gr. C VDE 0627/06.86

Cover
Cover
Doesn't consider pin/
socket
with spring contacts
24 poles = 2xM25
Version A Version B

poles quantity thread gland type Dimensions L B H Package Catalogue number Catalogue number
Socket / pin
10-poles + grounding		 M20 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.350.1035.0 70.350.1035.1 70.350.1035.2 70.350.1035.3 70.351.1035.0 70.351.1035.1 70.351.1035.2 70.351.1035.3
M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.353.1035.0 70.353.1035.1 70.353.1035.2 70.353.1035.3
Socket / pin
16-poles + grounding		 M25

0 with gland1 z thread under the gland
2 ring under the gland
3 gland with clamps

   93,5 43 60 1 70.350.1635.0 70.350.1635.1 70.350.1635.2 70.350.1635.3 70.351.1635.0 70.351.1635.1 70.351.1635.2 70.351.1635.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 43 60 1 70.353.1635.0 70.353.1635.1 70.353.1635.2 70.353.1635.3
Socket / pin
24-poles + grounding		 M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.350.2435.0 70.350.2435.1 70.350.2435.2 70.350.2435.3 70.351.2435.0 70.351.2435.1 70.351.2435.2 70.351.2435.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.353.2435.0 70.353.2435.1 70.353.2435.2 70.353.2435.3
Socket / pin
32-poles + grounding		 M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 82,5 94 1 70.350.3235.0 70.350.3235.1 70.350.3235.2 70.350.3235.3
M40 1 z thread under the gland
2 pierścień pod dławik		   93,5 82,5 94 1 70.353.3235.1
70.353 .3235.2

  Version c Version d

  Cover Cover z dźwigniami

  Version C Version D
poles quantity thread gland type Dimensions L B H Package Catalogue number Catalogue number
Socket / pin
10-poles + grounding		 M20 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.352.1035.0 70.352.1035.1 70.352.1035.2 70.352.1035.3 70.355.1035.0 70.355.1035.1 70.355.1035.2 70.355.1035.3
M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.354.1035.0 70.354.1035.1 70.354.1035.2 70.354.1035.3 70.358.1035.0 70.358.1035.1 70.358.1035.2 70.358.1035.3
Socket / pin
16-poles + grounding		 M25

0 with gland1 z thread under the gland
2 ring under the gland
3 gland with clamps

   93,5 43 60 1 70.352.1635.0 70.352.1635.1 70.352.1635.2 70.352.1635.3 70.355.1635.0 70.355.1635.1 70.355.1635.2 70.355.1635.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 43 60 1 70.354.1635.0 70.354.1635.1 70.354.1635.2 70.354.1635.3 70.358.1635.0 70.358.1635.1 70.358.1635.2 70.358.1635.3
Socket / pin
24-poles + grounding		 M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.352.2435.0 70.352.2435.1 70.352.2435.2 70.352.2435.3 70.355.2435.0 70.355.2435.1 70.355.2435.2 70.355.2435.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.354.2435.0 70.354.2435.1 70.354.2435.2 70.354.2435.3 70.358.2435.0 70.358.2435.1 70.358.2435.2 70.358.2435.3
Socket / pin
32-poles + grounding		 M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 82,5 94 1 70.352.3235.0 70.352.3235.1 70.352.3235.2 70.352.3235.3
M40 1 z thread under the gland
2 pierścień pod dławik		   93,5 82,5 94 1 70.354.3235.1 70.354.3235.2

  Version e Version f


Cover
Doesn't consider pin/
socket
with spring contacts 24 poles = 2xM25
 Cover with lever

  Version E Version F

poles quantity thread gland type Dimensions L B H Package Catalogue number Catalogue number
Socket / pin
10-poles + grounding		 M20 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1 70.356.1035.0 70.356.1035.1 70.356.1035.2 70.356.1035.3 70.357.1035.0 70.357.1035.1 70.357.1035.2 70.357.1035.3
M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   73 43 53 1   70.359.1035.0 70.359.1035.1 70.359.1035.2 70.359.1035.3
Socket / pin
16-poles + grounding		 M25

0 with gland1 z thread under the gland
2 ring under the gland
3 gland with clamps

   93,5 43 60 1 70.356.1635.0 70.356.1635.1 70.356.1635.2 70.356.1635.3 70.357.1635.0 70.357.1635.1 70.357.1635.2 70.357.1635.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 43 60 1   70.359.1635.0 70.359.1635.1 70.359.1635.2 70.359.1635.3
Socket / pin
24-poles + grounding		 M25 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1 70.356.2435.0 70.356.2435.1 70.356.2435.2 70.356.2435.3 70.357.2435.0 70.357.2435.1 70.357.2435.2 70.357.2435.3
M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   120 43 70 1   70.359.2435.0 70.359.2435.1 70.359.2435.2 70.359.2435.3
Socket / pin
32-poles + grounding		 M32 0 with gland
1 z thread under the gland
2 ring under the gland
3 gland with clamps		   93,5 82,5 94 1
M40 1 z thread under the gland
2 pierścień pod dławik		   93,5 82,5 94 1







      Version a Version b Version c

IP 55
IP 65 (from gland side)
400 V ~ Gr. C VDE 0627/06.86
   Open base

 Closed base with two glands

 Closed base with gland from the center side
Version a Version b Version c

Ilośc poles thread gland type L B H Package Catalogue number Catalogue number Catalogue number
Socket / pin
10-poles + grounding
z thread under the gland		 M20 0 with gland
1thread under the gland

93
94
94

 43
52
52		 28
54,5
54,5

1
1
1

 70.320.1028.0 70.330.1035.0 70.331.1035.0 70.330.1035.1 70.331.1035.1
Socket / pin
16-poles + grounding z thread under the gland		 M25 0 with gland
1thread under the gland		 113
117
117		 43
52
52		 28
56,5 56,5		 1
1
1		 70.320.1628.0 70.330.1635.0 70.331.1635.0 70.330.1635.1 70.331.1635.1
Socket/pin
16-poles + grounding z thread under the gland high execution		 M32 0 with gland
1thread under the gland		 117
117		 52
52		 76,5 76,5 1
1		   73.334.4035.0 73.335.4035.0 73.334.4035.1 73.335.4035.1
Socket/pin
24-poles +grounding
z thread under the gland		 M25 0 with gland
1thread under the gland		 140
144
144

43
52
52

 28
56,5
56,5

1
1
1

 70.320.2428.0 70.330.2435.0 70.331.2435.0 70.330.2435.1 70.331.2435.1
Socket / pin
24-poles +grounding
z thread under the gland high execution		 M32 0with gland
1thread under the gland		 144
144		 52
52		 76,5 76,5 1
1		   73.334.6435.0 73.335.6435.0 73.334.6435.1 73.335.6435.1
Socket/pin
32-poles +grounding
z thread under the gland		     124 84 35 1 70.320.3228.0

      Version d Version e Version f


     Closed base with gland on the bottom Open cover with cover Open cover with cover
Version d Version e Version f
Ilośc poles thread gland type L B H Package Catalogue number Catalogue number Catalogue number
Socket / pin
10-poles + grounding
z thread under the gland		 M20 0 with gland
1thread under the gland

93
94
94

 43
52
52		 28
54,5
54,5

1
1
1

 70.333.1035.0 70.333.1035.1 70.325.1028.0 70.340.1035.0 70.325.1628.0
Socket / pin
16-poles + grounding z thread under the gland		 M25 0 with gland
1thread under the gland		 113
117
117		 43
52
52		 28
56,5 56,5		 1
1
1		 70.333.1635.0 70.333.1635.1 70.343.1035.1 70.340.1635.0 70.340.1635.1
Socket/pin
16-poles + grounding z thread under the gland high execution		 M32 0 with gland
1thread under the gland		 117
117		 52
52		 76,5 76,5 1
1		 73.337.4035.0 73.337.4035.1   73.344.4035.0 70.325.2428.0
Socket/pin
24-poles +grounding
z thread under the gland		 M25 0 with gland
1thread under the gland		 140
144
144

43
52
52

 28
56,5
56,5

1
1
1

 70.333.2435.0 70.333.2435.1 73.347.4035.1 70.340.2435.0 70.340.2435.1
Socket / pin
24-poles +grounding
z thread under the gland wykonanie wysokie		 M32 0with gland
1thread under the gland		 144
144		 52
52		 76,5 76,5 1
1		 73.337.6435.0 73.337.6435.1   73.344.6435.0 73.344.6435.1
Socket/pin
32-poles +grounding
z thread under the gland		     124 84 35 1
      Version g Version h Version i


     Closed base with gland from the bottom Open base with cover Open base with cover
Version g Version h Version i
poles quantity thread gland type L B H Package Catalogue number Catalogue number Catalogue number
Socket / pin
10-poles + grounding
z thread under the gland		 M20 0 with gland
1thread under the gland

93
94
94

 43
52
52		 28
54,5
54,5

1
1
1

 70.341.1035.0 70.340.1035.1 70.342.1035.0 70.341.1035.1 70.343.1035.0 70.342.1035.1
Socket / pin
16-poles + grounding z thread under the gland		 M25 0 with gland
1thread under the gland		 113
117
117		 43
52
52		 28
56,5 56,5		 1
1
1		 70.341.1635.0 70.341.1635.1 70.342.1635.0 70.342.1635.1 70.343.1635.0 70.343.1635.1
Socket/pin
16-poles + grounding z thread under the gland high execution		 M32 0 with gland
1thread under the gland		 117
117		 52
52		 76,5 76,5 1
1		 73.345.4035.0 73.344.4035.1 73.346.4035.0 73.345.4035.1 73.347.4035.0 73.346.4035.1
Socket/pin
24-poles +grounding
z thread under the gland		 M25 0 with gland
1thread under the gland		 140
144
144

43
52
52

 28
56,5
56,5

1
1
1

 70.341.2435.0 70.341.2435.1 70.342.2435.0 70.342.2435.1 70.343.2435.0 70.343.2435.1
Socket / pin
24-poles +grounding
z thread under the gland high execution		 M32 0with gland
1thread under the gland		 144
144		 52
52		 76,5 76,5 1
1		 73.345.6435.0 73.345.6435.1 73.346.6435.0 73.346.6435.1 73.347.6435.0 73.347.6435.1
Socket/pin
32-poles +grounding
z thread under the gland		     124 84 35 1


base Assembly holes (mm) Raster (mm) d1 MI
L1 L2 L3 L4
10 65 83 32 35 4,3 M4
16 85,5 103 32 35 4,3 M4
24 112 130 32 35 4,3 M4
32 112 148 70 81 6,4 M6

base
L5 L6
10 82 40
16 105 45
24 132 45



По-малко
Прочетете още
Коментари (0)
