Cерия CWT ULTRA MINI

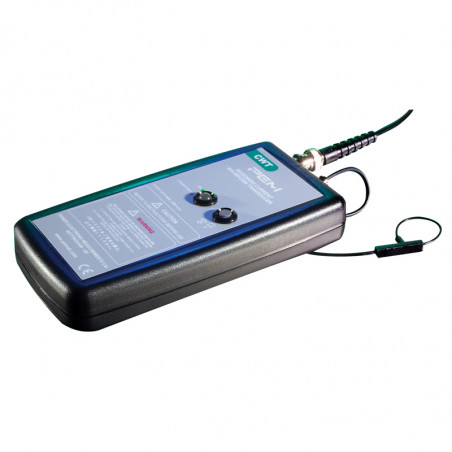

The CWT Ultra-mini has an extremely thin, clip-around Rogowski coil of typically 1.6mm cross-section. Such a thin coil enables currents to be measured in the most difficult to
reach parts of a power electronic converter with negligible disruption to the circuit under test.

Technical data:
Measure range do 6kA
Output signal ± 6V dla prądu max
Bandwidth kilka Hz do 30MHz
Positional accuracy typically ± 2%
Linearity ± 0.05% pełnej skali
Operating temperature range -40°C...+125°C
Supplier operating temperature 0°C...+40°C
Output BNC


Model Sensitivity
[mV/A]		 Peak
current
[A]		 Noise
maximum
[mV pk-pk]		 Droop *
[%/ms]		 LF (-3dB)
bandwidth
[Hz]LF (-3dB)		 HF (-3dB)
bandwidth
[MHz] HF (-3dB)		 Peak
di/dt
[kA/us]

CWT015

 200 30 20 80 116 30 2

CWT03

 100 60 20 65 67 30 4

CWT06

 50 120 15 35 34 30 8

CWT1

 20 300 15 9 9,2 30 20

CWT3

 10 600 10 6 6,2 30 40

CWT6

 5 1200 10 3 3,2 30 70

CWT15

 2 3000 5 2 2 30 70

CWT30

 1 6000 5 2 2 30 70



Catalogue number

CWTUM

 /

015

 /

R

 /

1

 /

80

Model:
* see above table

POWER SUPPLY:
B - Battery 4 x AA (1.5V standard alkali batteries)
R-Rechargeable:4 x AA 1.2V NiMH batteries.
Cable length
- 1 – 1m
- longer cables available on request
Coil length
- 80 – 80mm
- longer coils available on request
