Производител: Norgren

Серия excelon

Complete sets

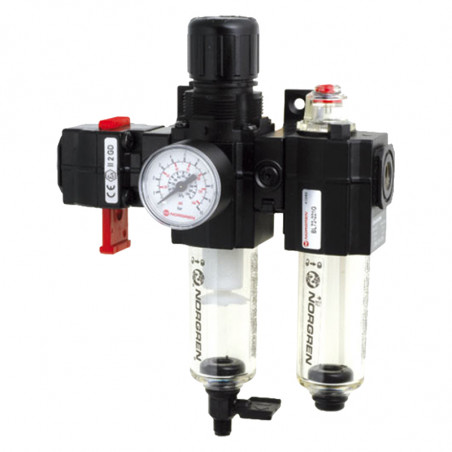

Reducers with filter and lubricator- G1/4 ... G1/2

Complete set consists of: reducer with filter and lubricator and cut off valve, manometer, and assembly grips.
-High efficiency of humidity removal.
- Easy removal container.
- Hand wheel equipped with setup blockade.
- Cover for setup change(option).
- Pneumatic circuits standard equipment.

Technical data
Medium:
 Compressed air
Max. input pressure
 10 bar
Manometer connector R6 1/8
Ambient temperature
 -20°C ...+50°C
Pressure range
 0,3-10 bar


BOXED SETS BL72 SERIES


  MODEL ADDITIONAL EQUIPMENT
Connector size Container Condensate automatic release Condensate manual release Noise filter Hand wheel blockade
G1/4 T BL72-201GA BL72-221G T40M0500 4255-51


BOXED SETS BL73 SERIES


  MODEL ADDITIONAL EQUIPMENT
Connector size Container Condensate automatic release Condensate manual release Noise filter Hand wheel blockade
G3/8 T BL73-301G BL73-321G T40M0500 4455-51


BOXED SETS BL74 SERIES

  MODEL ADDITIONAL EQUIPMENT
Connector size Container Condensate automatic release Condensate manual release Noise filter Hand wheel blockade
G 1/2 GT BL74-401G BL74-421G T4081800 4355-51
