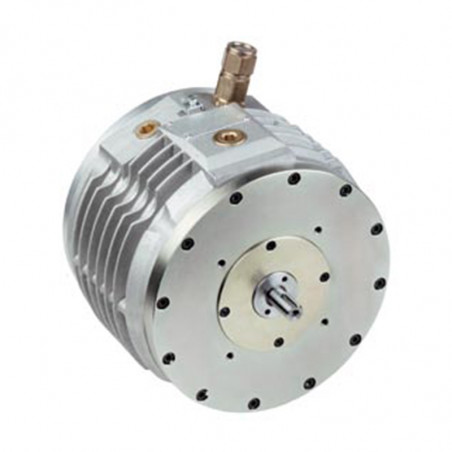

The XtraforsEx series are axial airgap AC and DC servomotors housed in an flameproof enclosure. The motors are ATEX and CE compliant Zone 1 and 21, Gas group IIC (Hydrogen). |
DC Servomotors | AC Servomotors | |||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
MS-2 | MS-4 | MS-6 | MS-8 | MS-12 | MS-22 | MA-3 | MA-6 | MA-10 | MA-20 | MA-30 | ||
Rated torque | [Nm] | 0,60 | 1,26 | 1,83 | 2,56 | 3,95 | 8,19 | 1,23 | 3,47 | 5,40 | 7,70 | 13,00 |
Rated speed | [rpm] | 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | 5330 | 3560 | 3650 | 3070 | 3180 |
Rated current | [ADC] | 6,5 | 7,8 | 10,7 | 10,7 | 14,0 | 16,0 | 2,05 | 3,86 | 6,00 | 7,40 | 13,00 |
Rated voltage | [VDC] | 39,4 | 67,0 | 67,8 | 89,7 | 106,7 | 181,0 | |||||
Peak speed | [rpm] | 7000 | 6000 | 6000 | 5000 | 4500 | 4000 | |||||
Peak speed @230VAC | [rpm] | 6950 | 4170 | 4170 | 3470 | 3470 | ||||||
Peak speed @400VAC | [rpm] | 9000 | 6000 | 6000 | 6000 | 6000 |
Standard version
|
Options
|
Dimensions | [mm] | Flange | MS-2 | MS-4, -6, -8 | MS-12, -22 | MA-3 | MA-6, -10 | MA-20, -30 |
---|---|---|---|---|---|---|---|---|
AΦ | j6 | B14 | 80 | 95 | 180 | 80 | 95 | 180 |
B5 | 130 | 180 | 250 | 130 | 180 | 250 | ||
BΦ | 141 | 201 | 262 | 141 | 201 | 262 | ||
CΦ | g6 | 11 | 14 | 24 | 11 | 14 | 24 | |
D | DIN6885 | A4x4x14 | A5x5x20 | A8x7x32 | A4x4x14 | A5x5x20 | A8x7x32 | |
E | 2,5 | 2,0 | 3,5 | 2,5 | 2,0 | 3,5 | ||
F | 25,5 | 30,0 | 50,0 | 25,5 | 30,0 | 50,0 | ||
GΦ | B14 | 100 | 115 | 215 | 100 | 115 | 215 | |
B5 | 165 | 215 | 300 | 165 | 215 | 300 | ||
H | B14 | 4xM6x8 | 4xM6x10 | 4xM12x14 | 4xM6x8 | 4xM6x10 | 4xM12x14 | |
Φ | B5 | 4xΦ11 | 4xΦ11 | 4xΦ18 | 4xΦ11 | 4xΦ11 | 4xΦ18 | |
J | 149,5 | 159,5 | 188,6 | 149,5 | 159,5 | 188,6 | ||
K | B5 | 154±1 | 201±1 | 284±1,5 | 154±1 | 201±1 | 284±1,5 |
MS-2 | MS-4, -6, -8 | MS-12 | MS-22 | MA-3 | MA-6, -10 | MA-20, -30 | ||
---|---|---|---|---|---|---|---|---|
Torque | [Nm] | 1,2 | 2,5 | 5,0 | 12,0 | 1,0 | 4,0 | 8,0 |
Tension | [VDC] | 24 (+6%-10%) | 24 (+6%-10%) |
Type | D40 | D40 | D40 | D26 | |
---|---|---|---|---|---|
Tension | [V/krpm] | 10±5% |
