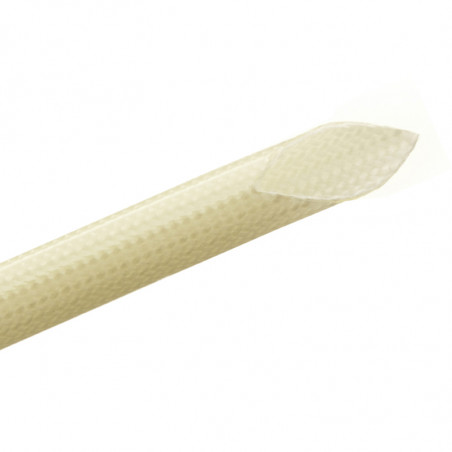

13F3 SILIGAINE от -30 ° С до + 155 ° С (клас F)
  • 13F3 SILIGAINE от -30 ° С до + 155 ° С (клас F)

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: OMERIN

13F3 SILIGAINE от -30 ° С до + 155 ° С (клас F)

Characteristics
• Continuous operating temperature: -30 °C to +155 °C.
• Good resistance to oils and common chemical environments.
• Compatible with most impregnation varnishes class F.
• Very good flexibility.
• Dielectric strength (dry): Central value: 3 kV. Lowest value: > 2.5 kV.

Standard products
• Colour: natural.

Packaging
• Diameters from 0.5 to 1.5 mm: 200 m rolls.
• Diameters from 2 to 4.5 mm: 100 m rolls.
• Diameters from 5 to 25 mm: 50 m rolls.

Standards
• IEC 60684-1 and 60684-2.
• IEC 60684-3 part 409.

Applications
• Internal cabling for rotating and static machines, classes B and F (motors, alternators, generators, transformers, inductors, etc.).

Options
• Other diameters: contact us
• Other colours: contact us
• Sleevings cut to length: contact us


INTERNAL DIAMETER SILIGAINE 13F3
Nominal value (mm) Tolerance (mm) Approximate wall thickness (mm) Approximate linear weight [kg/km]
0.5 ±0.20 0.2 1.3
0.8 ±0.20 0.2 2.2
1 ±0.25 0.2 2.7
1.5 ±0.25 0.2 4.2
2 ± 0.25 0.2 5.7
2.5 ± 0.25 0.2 7.2
3 ± 0.25 0.2 8.8
3.5 ± 0.30 0.2 10.5
4 ± 0.30 0.3 12.2
4.5 ± 0.30 0.3 14.0
5 ± 0.30 0.3 15.8
6 ± 0.30 0.3 19.6
7 ± 0.40 0.3 23.7
8 ± 0.40 0.3 28.0
9 ± 0.50 0.3 32.5
10 ± 0.50 0.4 37.2
12 ± 1.0 0.4 47.3
14 ± 1.0 0.4 58.3
16 ± 1.0 0.4 70.1
18 ± 1.0 0.4 82.9
20 ± 1.0 0.4 96.5
22 ± 1.5 0.5 111
25 ± 2.0 0.5 115
