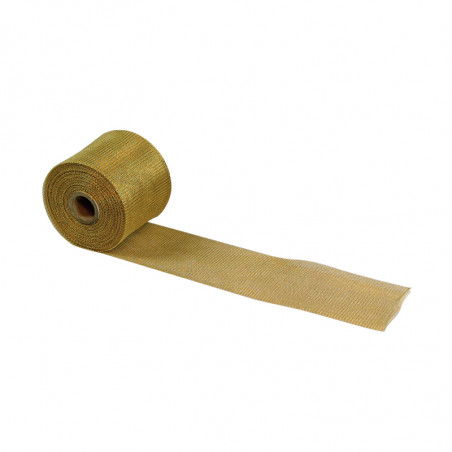

Екраниращи ленти от плетена мрежа

  • especially designed for shielding and grounding of electrical and electronic cable assemblies
  • flexible structure to conform to irregular surfaces and contours during the wrapping process
    (50% overlap bandage)
  • tin plating to allow solderability
  • useful for static discharge (esd)
  • tinned copper clad steel is standard material (best performance)
  • several other alloys and wire diameters are available


Available materials

  • tinned copper clad steel  (TC)
  • tinned copper  (TR)
  • stainless steel  (SL)
  • monel  (MO)
  • aluminium  (AL)

Complete the P/N with

number of wires (1 is standard)
2-letters METAL SUFFIX
wire diameter (0.11 mm is standard)


Order example

C.0127.TCtape 12.7 mm width, 1 Tinned Copper Clad Steel wire, standard wire diameter (0.11 mm)
C.501.2BR/015tape 50.1 mm width, 2 Tinned Copper wires, wire diameter 0.12 mm

P/N Width
[mm]

C.0127

12,7

C.0191

19,1

C.0254

25,4

C.0508

50,8

C.0762

76,2

C.1016

101,6

C.1524

152,4

ST.111

11.1

ST.127

12.7

Mechanical tolerances:
<20 mm +0,8 -0,8 mm
21-50 mm +1,3 -1,3 mm
51-155 mm +2,0 -2,0 mm



Frequency Attenuation
[dB]
  TC MO SL AL TR
1 MHz 78 70 69 73 73
10 MHz 66 64 61 63 65
100 MHz 60 60 58 58 59
1 GHz 55 56 51 56 54
10 GHz 40 42 37 44 40

NOTE:
these values are indicative only and are for 50% overlap, giving effective 4 layers of mesh



E-field attenuation
