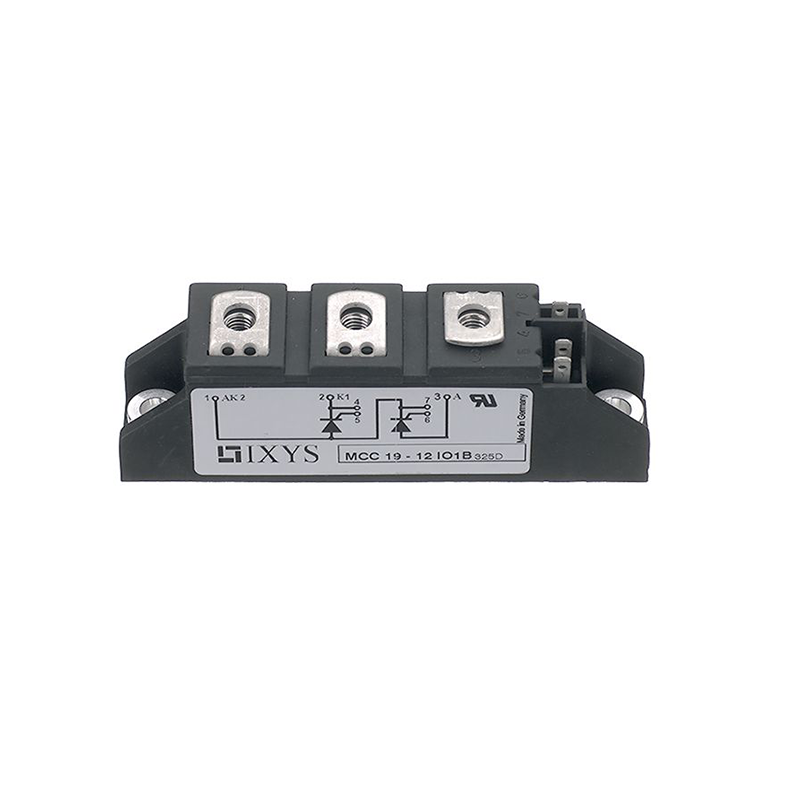

Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Drawing1
|
Drawing2
|
Drawing3
|
![]() |
![]() |
![]() |
Operation conditions:
One element power blocks are used in power electronic systems.
• Ambient air temperature-100 C - +400 C
• Atmospheric pressure 860hPa - 1060hPa
• Humidity less then 80% @ temperature 400 C
• Cooling air without aggressive factors.
Scheme
Module type | Mean current IF(AV) [A] | Blocking voltage U RRM [V] |
Over current voltage I FSM [A] |
Dimensions [mm] |
Block weight [kg] |
---|---|---|---|---|---|
M2T7P | 450…650 | 400…2400 | 7000…10000 | ![]() |
3,1 |
M2T8P | 630…1000 | 400…8500 | 10000…24000 | ![]() |
3,3 |
M2T9P | 1000…2000 | 400…7500 | 20000…42000 | ![]() |
7,9 |
M2T11P | 1000…3200 | 400…6000 | 27000…65000 | ![]() |
12 |
Интересувате ли се от този продукт? Имате ли нужда от допълнителна информация или индивидуални цени?
