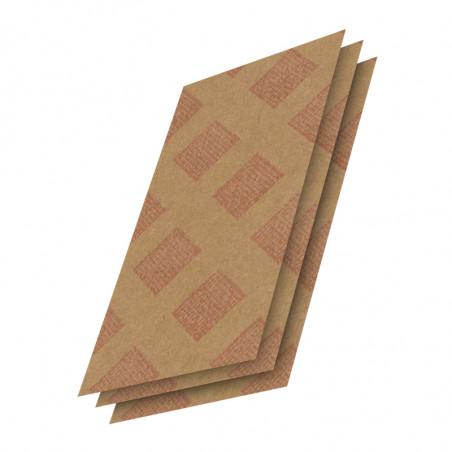

![Трансформаторна хартия Трансформаторна хартия](https://www.dacpol.eu/6932-large_default/transformatorna-khartiya.jpg)
![Трансформаторна хартия Трансформаторна хартия](https://www.dacpol.eu/6932-large_default/transformatorna-khartiya.jpg)
Трябва да сте влезли в
Category
Montaż urządzeń
Modernizacja induktorów
Urządzenia indukcyjne
asd
Снимките са само с информационна цел. Вижте спецификацията на продукта
please use latin characters
Preferences
Insulation class A (105°C)
High purity and mechanical withstand
Epoxide resin(B-stage)
High ability to insulation oils absorption.
Usage:
Layer insulation in oil transformers.
Availability:
• in rollers - 1000 mm width
• on spools min width 5 mm
• thickness 0,05 mm - 1,0 mm
Properties |
Standard |
unit |
0.10mm |
0.15 mm |
020 mm |
0,30 mm |
0.40 mm |
0.50 mm |
---|---|---|---|---|---|---|---|---|
Thickness/ tolerance |
EC641 |
mm |
0,10 |
0.15 |
0.20 |
0.30 |
0.40 |
0.50 |
Density |
EC641 |
g/cm 3
|
1,2- 1,3 |
1,2- 1,3 |
1,2- 1,3 |
1,2- 1,3 |
1,2- 1,3 |
1,2- 1,3 |
Weight 1m2 |
EC641 |
g/m |
1250 (+/-10%) |
1675 (+/-10%) |
2500 (+/-10%) |
3750 (+/-10%) |
5000 (+/-10%) |
6250 (+/-10%) |
Lengthen |
EC641 |
% % |
6 8 |
6 8 |
|
|
|
|
Resistance for lengthening |
EC641 |
|
70 |
70 |
70 |
70 |
70 |
70 |
Thickness coat/ side |
EC641 |
Approx.um |
10 |
10 |
10 |
10 |
10 |
10 |
Shrinking |
EC641 |
max. % |
1,2 |
1,2 |
1,2 |
1,2 |
1,2 |
1,2 |
Dielectric withstand |
EC641 |
kV / mm |
9,5 |
9,5 |
9,5 |
9,5 |
9,5 |
9,5 |
