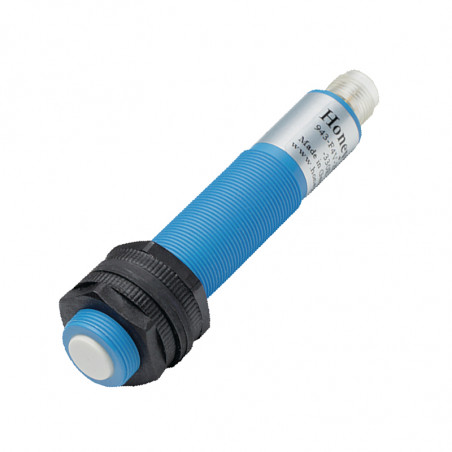

Ултразвукови датчици със функция за запаметяване 943
  • Ултразвукови датчици със функция за запаметяване 943

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: Honeywell

Ултразвукови датчици със функция за запаметяване 943

Technical data

Beam angle: 8°
IP: IP65
Casing: plastic (PBTB)

Type Output Connection Power supply Switching frequency Repeatability Max measuring range Min. measuring range Casing
2 switch over outputs PNP NO and NPN NO
943-T4V-2D-001-130E PNP, 2 NO/NZ Connector 12...30V 1.0Hz 0,2 % or 2 mm 3500 mm 300 mm M30 x 1,5 mm
943-T4Y-2D-001-130E PNP, 2 NO/NZ Cable 12...30V 1.0Hz 0,2 % or 2 mm 3500 mm 300 mm M30 x 1,5 mm
943-T4V-2D-002-130E NPN, 2 NO/NZ Connector 12...30V 1.0Hz 0,2 % or 2 mm 3500 mm 300 mm M30 x 1,5 mm
943-T4Y-2D-002-130E NPN, 2 NO/NZ Cable 12...30V 1.0Hz 0,2 % or 2 mm 3500 mm 300 mm M30 x 1,5 mm
943-F4V-2D-001-180E PNP, 2 NO/NZ Connector 12...30V 1.2Hz 0,2 % or 2 mm 2000 mm 200 mm M18 x 1,0 mm
943-F4Y-2D-001-180E PNP, 2 NO/NZ Cable 12...30V 1.2Hz 0,2 % or 2 mm 2000 mm 200 mm M18 x 1,0 mm
943-F4V-2D-002-180E NPN, 2 NO/NZ Connector 12...30V 1.2Hz 0,2 % or 2 mm 2000 mm 200 mm M18x 1,0 mm
943-F4Y-2D-002-180E NPN, 2 NO/NZ Cable 12...30V 1.2Hz 0,2 % or 2 mm 2000 mm 200 mm M18 x 1,0 mm
943-F4V-2D-001-300E PNP, 2 NO/NZ Connector 12...30V 4.7Hz 0,2 % or 1 mm 800 mm 100 mm M18x 1,0 mm
943-F4Y-2D-001-300E PNP, 2 NO/NZ Cable 12...30V 4.7Hz 0,2 % or 1 mm 800 mm 100 mm M18 x 1,0 mm
943-F4V-2D-002-300E NPN, 2 NO/NZ Connector 12...30V 4.7Hz 0,2 % or 1 mm 800 mm 100 mm M18x 1,0 mm
943-F4Y-2D-002-300E NPN, 2 NO/NZ Cable 12...30V 4.7Hz 0,2 % or 1 mm 800 mm 100 mm M18 x 1,0 mm
943-F4V-2D-001-330E PNP, 2 NO/NZ Connector 12...30V 4.7Hz 0,2 % or 1 mm 500 mm 60 mm M18x 1,0 mm
943-F4Y-2D-001-330E PNP, 2 NO/NZ Cable 12...30V 4.7Hz 0,2 % or 1 mm 500 mm 60 mm M18 x 1,0 mm
943-F4V-2D-002-330E NPN, 2 NO/NZ Connector 12...30V 4.7Hz 0,2 % or 1 mm 500 mm 60 mm M18 x 1,0 mm
943-F4Y-2D-002-330E NPN, 2 NO/NZ Cable 12...30V   0,2 % or 1 mm 500 mm 60 mm M18 x 1,0 mm
Analogue output 0-10 V or 4-20 mA
943-T4V-2D-1C0-130E 0...10V Connector 15...30V 400 ms 0,2 % or 2 mm 3500 mm 300 mm M30x 1,5 mm
943-T4Y-2D-1C0-130E 0...10V Cable 15...30V 400 ms 0,2 % or 2 mm 3500 mm 300 mm M30 x 1,5 mm
943-T4V-2D-1D0-130E 4...20mA Connector 15...30V 400 ms 0,2 % or 2 mm 3500 mm 300 mm M30 x 1,5 mm
943-T4Y-2D-1D0-130E 4...20mA Cable 15...30V 400 ms 0,2 % or 2 mm 3500 mm 300 mm M30x 1,5 mm
943-F4V-2D-1C0-180E 0...10V Connector 15...30V 250 ms 0,2 % or 2 mm 2000 mm 200 mm M18 x 1,0 mm
943-F4Y-2D-1C0-180E 0...10V Cable 15...30V 250 ms 0,2 % or 2 mm 2000 mm 200 mm M18x 1,0 mm
943-F4V-2D-1D0-180E 4...20mA Connector 15...30V 250 ms 0,2 % or 2 mm 2000 mm 200 mm M18 x 1,0 mm
943-F4Y-2D-1D0-180E 4...20mA Cable 15...30V 250 ms 0,2 % or 2 mm 2000 mm 200 mm M18x 1,0 mm
943-F4V-2D-1C0-300E 0...10V Connector 15...30V 100 ms 0,2 % or 1 mm 800 mm 100 mm M18 x 1,0 mm
943-F4Y-2D-1C0-300E 0...10V Cable 15...30V 100 ms 0,2 % or 1 mm 800 mm 100 mm M18x 1,0 mm
943-F4V-2D-1D0-300E 4...20mA Connector 15...30V 100 ms 0,2 % or 1 mm 800 mm 100 mm M18 x 1,0 mm
943-F4Y-2D-1D0-300E 4...20mA Cable 15...30V 100 ms 0,2 % or 1 mm 800 mm 100 mm M18 x 1,0 mm
943-F4V-2D-1C0-330E 0...10V Connector 15...30V 100 ms 0,2 % or 1 mm 500 mm 60 mm M18 x 1,0 mm
943-F4Y-2D-1C0-330E 0...10V Cable 15...30V 100 ms 0,2 % or 1 mm 500 mm 60 mm M18 x 1,0 mm
943-F4V-2D-1D0-330E 4...20mA Connector 15...30V 100 ms 0,2 % or 1 mm 500 mm 60 mm M18x 1,0 mm
943-F4Y-2D-1D0-330E 4...20mA Cable 15...30V 100 ms 0,2 % or 1 mm 500 mm 60 mm M18 x 1,0 mm

Dimensions [mm]
