Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: METCASE

UNIDIDEK DESKTOP / КОНТРОЛ

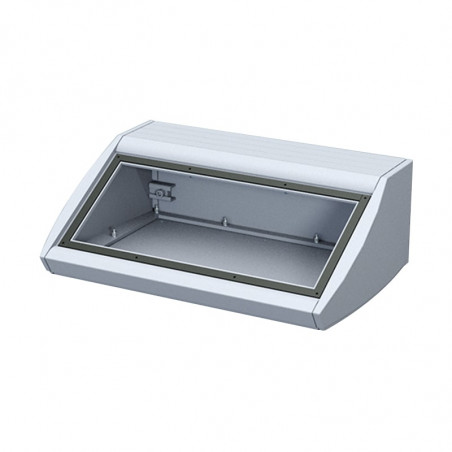

Unidesk Terminal Enclosures Ergonomic IP 54† sloping front enclosures for desktop or wall mounted applications.
Pre-assembled aluminium case body with removable base panel.
†To maintain IP 54, fit PCB pillars M 56 00 001, or your own plugs, to the mounting holes in the base panel.

Opis

1)Aluminium enclosure
2)Gaskets
3)†Base panel
4)Rubber foot (x4)
5)M3 x 12 mm (x20)
M3 x 12 mm T10 (x20)
6)Gaskets
7)*Front panel
* Accessories

Standardowe kolory

Wymiary i rysunki Unidesk
Unidesk

Part No.VersionColoursWDHAB
M 53 20 105 M200  RAL 7035 200 (7.87”) 200 (7.87”) 102 (4.01”) 170 (6.69”) 147 (5.78”)
M 53 20 109 M200  RAL 9005 200 (7.87”) 200 (7.87”) 102 (4.01”) 170 (6.69”) 147 (5.78”)
M 53 30 105 M300  RAL 7035 300 (11.81”) 200 (7.87”) 102 (4.01”) 270 (10.63”) 247 (9.72”)
M 53 30 109 M300  RAL 9005 300 (11.81”) 200 (7.87”) 102 (4.01”) 270 (10.63”) 247 (9.72”)
M 53 40 105 M400  RAL 7035 400 (15.74”) 200 (7.87”) 102 (4.01”) 370 (14.56”) 347 (13.66”)
M 53 40 109 M400  RAL 9005 400 (15.74”) 200 (7.87”) 102 (4.01”) 370 (14.56”) 347 (13.66”)


M200 M300 M400


Front Panel
Part No.VersionAB
M 53 01 502 M200 170 (6.69”) 123 (4.84”)
M 53 01 503 M300 270 (10.63”) 123 (4.84”)
M 53 01 504 M400 370 (14.56”) 123 (4.84”)

Wall Kit

Part No.

Version

M 53 02 212

M200

M 53 02 213

M300

M 53 02 214

M400

PCB Mounting Kit
PartNoArticel
M 56 00 001 1 + 2 X 10
