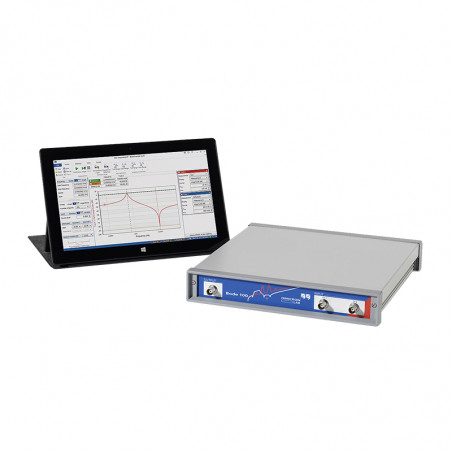

Векторов анализатор на вериги Bode 100

If the wide frequency range from 1 Hz to 40 MHz fits your needs, the full beauty of the Bode 100 will impress you.
With the Bode 100 you are ready to measure

  • Complex gain
  • Complex impedance and admittance
  • Reflection coefficient and return loss and easily analyze
  • Ultrasonic and piezo electric systems
  • Stability of control circuits such as DC/DC converters in power supplies
  • Swept S-parameters of electronic circuits
  • Group delay characteristics of your DUT
  • Frequency dependent impedance of high-Q circuits like oscillating crystals
  • Influence of termination on amplifiers or filters
  • Reflection and adaptation of antennas
  • And much more ...





Application Note Collection:

  • Solar Cell Impedance Measurement
  • Low Value Impedance Measurements
  • Broadcast and Ham Radio Antenna Evaluation
  • Measuring Optocouplers
  • Battery Impedance Measurement
  • Capacitor ESR Measurement
  • Coaxial Cable Analysis and Fault Detection with the Bode 100
  • DC Biased Impedance Measurements
  • DSL Cable Analysis with Bode 100
  • Equivalent Circuit Analysis of Quartz Crystals
  • LDO Reverse Transfer Measurement
  • DC/DC Converter Stability Measurement
  • Noninvasive Stability Measurements of voltage regulators
  • Op-Amp Measurements with Bode 100
  • Passive Filter Design with QuickFil
  • Planar Transformer Measurement with Bode 100
  • Power Supply Rejection Ratio Measurement
  • Radio Transmission Analysis
  • RFI Power Inlet Filter Measurement
  • RFID Resonance Frequency Measurement
  • Small Signal Transformer Analysis with the Bode 100
  • Using Probes with Bode 100
  • Voltage Regulator Crosstalk

Delivery includes

  • Bode 100 Vector Network Analyzer
  • Bode Analyzer Suite (on CD)
  • Manual (English)
  • Wide range AC power adapter
  • USB cable
  • 4 x BNC cable 50 Ω (m – m)
  • 1 x BNC T adapter (f – f – f )
  • 1 x BNC straight adapter (f – f)
  • 1 x BNC 50 Ω load (m)
  • 1 x BNC short circuit (m)
  • Test objects: Quartz filter and
  • IF filter on a PCB



B-WIT 100
Wideband Injection Transformer
Order Number: OL000151



B-WIC
Impedance Adapter for wired components
Order Number: OL000153

B-SMC
Impedance Adapter for surface mounted components
Order Number: OL000152
