Производител: Lippmann

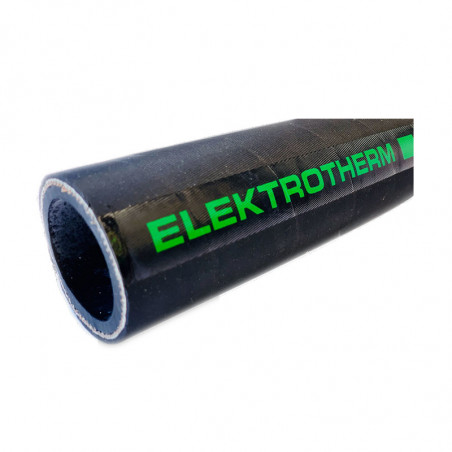

Непроводен маркуч - Elektrotherm

ELEKTROTHERM



Properties
  • Cover: black, self-extinguishing, non-conductive
  • Lining: black, smooth, non-conductive
  • Temperature range: – 35°C up to +80°C (short term up to + 100°C) water temperature
  • Working pressure: 6 bar, Test pressure: 12 bar and Burst pressure: 18 bar
  • Electrical resistance: R>10¹¹ Ohm
  • Dielectric strength: > 6 kV
  • Lengthwise labelling: ELEKTROTHERM Elektroschlauch in color green
Material
  • Lining: black, smooth, non-conductive
  • Reinforcement: technical fibre
  • Cover: EPDM / CR, non-conductive, self-extinguishing, resistant to UV rays and ozone
Areas of Application
  • Cooling water hoses or for water cooled high-current cables
  • Induction Melting Furnaces
  • Electric-Arc-Furnace (EAF)
  • Ladle Furnace (LF)
Available Sizes:
DN 13 x 6 mm DN 19 x 6 mm DN 25 x 6 mm DN 30 x 6,5 mm DN 32 x 6,5 mm DN 35 x 6,5 mm DN 35 x 8 mm DN 40 x 6,5 mm
DN 38 x 7 mm DN 42 x 6,5 mm DN 50 x 8 mm DN 55 x 8 mm DN 60 x 8 mm DN 63 x 8 mm DN 80 x 8 mm
