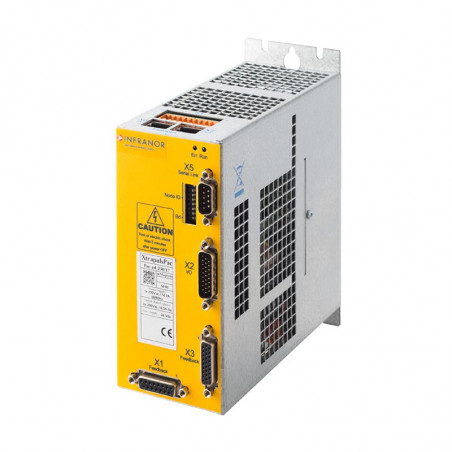

Functions DS402 standard modes Electronic gearing, camming, stepper emulation Analog speed drive, stand-alone positioner Safety Safe Torque Off (STO) function SIL 3 Motion safety functions SIL 2: SS1 / SS2 / SOS / SLS / SDI / SBC Power ranges 230 VAC: 5 to 17 Arms max. 480 VAC: 8 to 200 Arms max. Interfaces RS-232, CANopen®, EtherCAT® Digital and analog I/Os Sensors Encoders: incremental, Hiperface® absolute, SinCos, HES Digital encoder: Hiperface DSL® (one single motor cable) Tools Gem Drive Studio: drive configuration software Safety Tool: safety functions configuration software |
Drive type |
PAC-SF01-230 |
PAC-SF01-400 |
PAC-SF01-400 |
|
Power supply type |
GDPS-4003 |
|||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
/05 |
/11 |
/17 |
/08 |
/20 |
/45 |
/100 |
/200 |
|
/16 |
/32 |
/64 |
|
Peak current [Arms] |
5 |
11 |
17 |
8 |
20 |
45 |
100 |
200 |
Nominal power |
16kW |
32kW |
64kW |
|
Cont. current [Arms] |
2,5 |
5,5 |
8,5 |
4 |
10 |
22,5 |
35 |
75 |
Voltage |
3x230VAC / 3x480VAC |
|||
Voltage |
1x230VAC1/320 VDC2 |
3x480VAC1/680 VDC2 |
680VDC2 |
3Integrated mains filter, DC bus output for parallel connection of several drives, external braking resistor |
1 Integrated power supply2External power supply
Certifications |
Safety |
|
---|---|---|
|
Safe Torque Off SIL 3 STO safety function integrated in the drive | |
Safety standards |
Advanced safety functions SIL 2 | |
|
|
|
The monitoring of motor movements by means of the safety functions allows the live machine to be stopped (Safe stop) without having to go through a process of restarting and resetting the machine. This functionality greatly enhances productivity and saves time.
Safety system overview |
Safety Tool |
![]() |
![]() |
Parameter setting assistent of the safety functions |
Dimensions [mm] |
A |
B |
C |
D |
E* |
X |
Y |
---|---|---|---|---|---|---|---|
Pac-SF01-230 V / 5 - 17 A |
178 |
148 |
178 |
70 |
- |
169 |
80 |
Pac- SF01-400 V / 8 - 45 A |
221 |
203 |
235 |
70(80*) |
125 |
225 |
80 |
Pac- SF01-400 V / 100 A |
244 |
203 |
235 |
80(80*) |
125 |
225 |
80 |
Pac- SF01-400 V / 200 A |
215 |
265 |
295 |
166,6 |
- |
285 |
100 |
GDPS-400 V / 16/32 kW |
158 |
203 |
235 |
70 |
- |
225 |
80 |
GDPS-400 V / 64 kW |
207 |
262,5 |
295 |
71,5 |
- |
285 |
80 |
