Скоби за измерване на напрежение на текущите релси
  • Скоби за измерване на напрежение на текущите релси

Снимките са само с информационна цел. Вижте спецификацията на продукта

please use latin characters

Производител: ELEQ

Скоби за измерване на напрежение на текущите релси

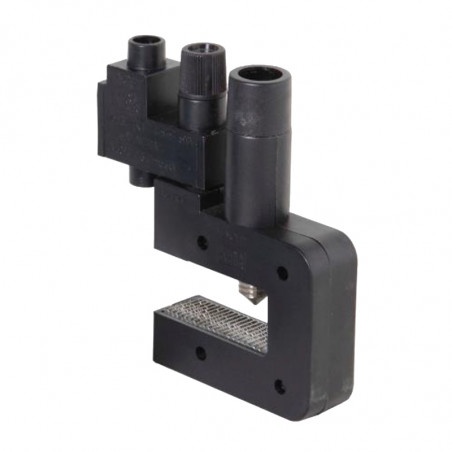

The UAK series is a line of busbar terminals, with or without fuse holders. The fuse holder is mounted directly on the conductor, optimally protecting the primary installation for short circuit currents in the measuring circuit. The terminal can be secured on the busbar with one hand using an insulated Allen key. The fuse holder is mounted directly on the metal part that makes contact with the busbar using a sturdy Allen screw. This provides a high degree of operational safety to short-circuiting. The UAK terminals are KEMA-KEUR certified.

Properties:
• Terminal for tapping voltage from busbars
• Particularly suitable for voltage-tapping for power meters
• Model with fuse directly on busbar
• Primary connection using M8 Allen screw
• KEMA-KEUR certified
• Breaking capacity 70kA@400V/50Hz


Description Color Diameter of measured cable Model
Fused phase terminal Black 1,5-4mm2 UAK4Z
Neutral terminal unfused Blue 0-16mm2 UAK16N
