Производител: Proconect

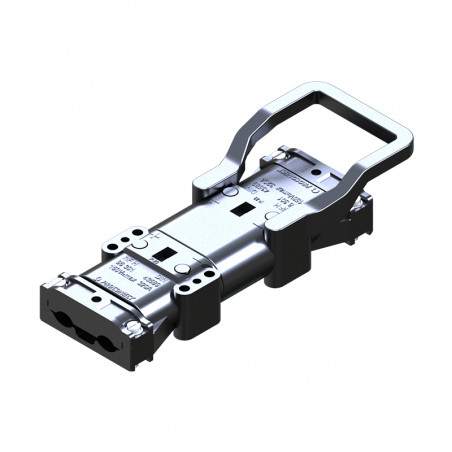

Nf 320 конектор за батерии

Battery connector NF 320

Characterictics:

  • Voltage: 150V DC max
  • Amperage: 320A
  • Temperature range: -20°C / +90°C
  • Housing: acidproof plastic
  • Contacts: copper alloy, silver plated, (to crimp or to solder)
  • Amperage of auxiliary contact: 20 A
  • Section of auxiliary contact: 2,5 mm2 i 4 mm2
  • Watertightness: IP23
  • Normes: NF EN 1175-1 and DIN VDE 0623-589

Complete connectors:

  Ref. Description Section
mm2 AWG
Connector 169320 Male 95 mm2 + reducer 70 mm2 95/70 2/0
169321 Male 50 1/0
169322 Male 70 2/0
169323 Male 95 3/0
Connector 169325 Female 50 1/0
169326 Female 70 2/0
169327 Female 95 3/0
169328 Female 95 mm2 + reducer 70 mm2 95/70 2/0
Auxiliary contacts
 169355 Male - 32 A  4 12
169357 Female - 32 A 4 12
Air contacts 169354 Male -
169359 Female
Handle
 169339 Black color -
169339-R Red color
169339-RH Red color - reinforced
Dust cap 169195 Female -
169200 Male

Spare parts:


 Ref. Description Section
mm2 AWG
Contact 169340 Male 95 mm2 + reducer 70 mm2 95/70 2/0
169341 Male 50 1/0
169342 Male 70 2/0
169343 Male 95 3/0
Contact 169345 Female 50 1/0
169346 Female 70 2/0
169347 Female 95 3/0
169350 Female 95 mm2 + reducer 70 mm2 95/70 2/0
Housing
 169350 Male -
169351 Female
Reducers 169194 70 mm2 / 50 mm2 -
169195 95 mm2 / 70 mm2
Voltage coding key 169392 Black color wet battery -
169393 Grey color gel battery

NF 320 Male

NF 320 Female

NF 320 Connector

NF 320 Male dust cap

NF 320 Female dust cap
