Řada SIRIO LED BLR

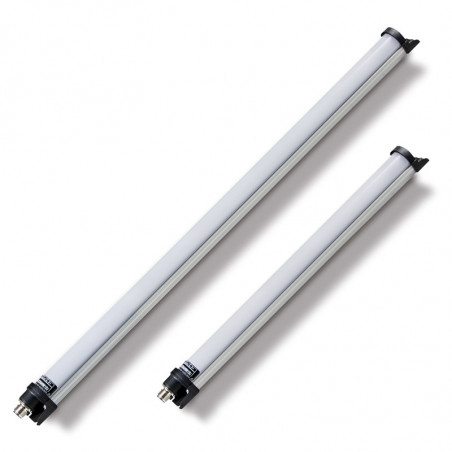

GIMAX LUMINAIRE type SIRIO BLR series

The lamp is designed for use in environments where a very small beam size with excellent luminous flux is required, such as machine internal transfer and metal car lift frames. The lamp has a compact structure, made in a shockproof version, self-extinguishing V0 polycarbonate. The extruded aluminum die has been specially designed to get better heat transfer area through the small channels. To ensure the maximum service life of the product during operation, the LED modules are mounted on a metal sled connected to the outer profile.
This solution allows the energy generated by the LEDs in the form of heat to be optimally dissipated to the outside to obtain over 50,000 operating hours (equivalent to almost 6 years of continuous use). The lamp is completely maintenance-free, 24Vdc mains operation via M12 connector. The product is mounted on the wall by attaching the foot integrated with the construction of sealing plugs, which have a double function.

Technical parameters

• Outer tube made of self-extinguishing opal polycarbonate V0, thickness 1 ± 0.15 mm
• Sealing plugs made of PA6 30% loaded with glass balls
• Integrated connectors - Aluminum carrier sled with thermal diffuser function - Aluminum profile with a special matrix designed for maximum heat dissipation of LED modules - CE marking
• Highly efficient LED modules (Lumileds) with color temperature 6,500 K, mean duration> 50,000 hours
• No photobiological risk
• Color rendering CRI 80
• Working temperature -20 ° C ÷ + 50 ° C
• M12 male connector - A
• Maintenance free
• Supply voltage 24Vdc
• Energy efficiency class A +++
• Insulation class: III
• Beam angle: 120 ° with opal diffuser

External BLR Drivers
Power supply Controller code Max. Dimensions mm Connector code M12
