LED osvětlení pro obráběcí stroje Sirio BF
  • LED osvětlení pro obráběcí stroje Sirio BF

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: C.C.E.A.

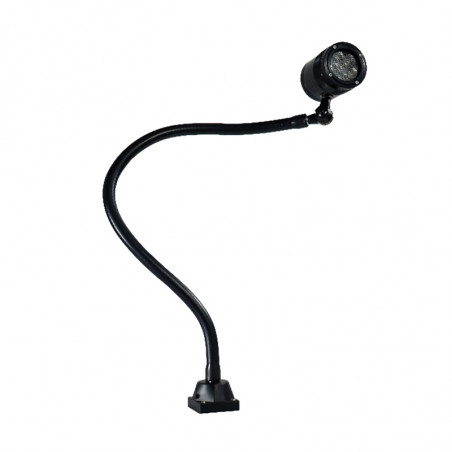

LED osvětlení pro obráběcí stroje Sirio BF

SIRIO BF Led lamp with flexible arm for manual machine tools

Ideal for workplaces and manual machine tools.

LED lamp with flexible arm. Ideal for work stations and manual machine tools such as cutters, lathes and drills. The exceptionally flexible arm allows you to orient the lamp at will. Available in variants with 3/6 Power LEDs, with a 40° concentration lens.

Dimmable with touch control.

  • 3/6 Power LED light source
  • Light color 5000K
  • 24Vdc Power Supply
  • 23.62in (600mm) length flexible arm
  • Dimmable with touch system (only BF2 version)
  • 40° concentration lens
  • Connection with M12-A 3pin connector
  • Available with external plug-in power supply for 100240Vac power supply

Mechanical features

Model

SR0321BF1

SR0321BF2

SR0621BF1

SR0621BF2

N° LED

3

3

6

6

On/Off Switch

without

with

without

with

Casing Material

Aluminum

Surface Treatment

Standard: 10 microns of black solution oxidation

Flex Arm

Ф18 flexible in iron and steel covered with black polyolefin sheath   L= 23.62in (600mm)

Lamp Base Material

PA66 GF30 black

Front Glass

0.16in (4mm) thick tempered glass

Internal Optics

40° Plexiglass (PMMA)

Protection index

IP67

Impact Resistance

IK06

Fixture

Standard with M5 screws

Metal clamp cod. CLAMP.04 (to be ordered separately)

Magnetic Base cod. B02 (to be ordered separately)

Peso

~ 1,8Kg



Dimensions

wymiary lampy led


Wiring Diagram

schemat okablowania lamy led do obrabiarek



Krzywa fotometryczna i izolina

Note: All surface areas are 1m x 1m


Mounting Accessories (ordered separatly)

akcesoria montażowe

External AC/DC Power Supply 100-240 V AC

zewnętrzne zasilanie lampa led

Ordering Codes
