Výrobce: ENEPAQ

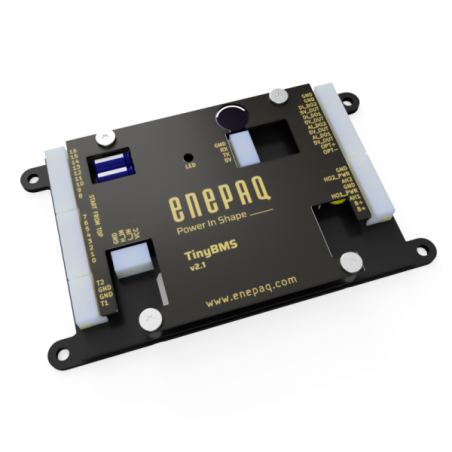

Battery Management System (BMS) 150A/750A

Battery Management System (BMS) 150A/750A

  • Integrated 150 A power switches
  • Connectivity: UART, MODBUS, CAN and Bluetooth
  • All parameters are adjustable: Voltage, Current, Temperature
  • Supports 12 V to 60 V Systems (4s-16s), all lithium chemistries
  • Dissipative Balancing up to 150 mA
  • Supporting up to two external temperature sensors and one dual-range current sensor
  • Event Log, Usage Statistics
  • Free Firmware Upgrades
  • Programmable Inputs & Outputs
  • Ultra-Compact Design: 95x65x9 mm
  • Current Sensor Connection

Battery Management System (BMS) 150A/750A

Battery Management System (BMS) 30A the Tiny BMS is an essential component of every Lithium battery. Enepaq Tiny BMS supports lithium batteries of any chemistry and up to 60 V nominal. Battery capacity from sub-1 Ah to 655 Ah can be managed easily. Tiny BMS measures individual voltages of parallel cell groups and manages switching of load and charger. During charging, cells are balanced by bleeding-off higher cells to accomplish full balance and maintain good health of battery pack. State-of-Charge is calculated as well, and is available via communication bus to be displayed for user.

FLEXIBILITY

User-upgradeable firmware allows quick updates, bringing bugfixes, new features and other improvements, such as client-specific functionality. Integrated communication bus allows easy reconfiguration and streaming of real time data, while extension I/Os enables operation with various external peripherals: current sensors, contactors, Enable switches, SOC gauges and more.

APPLICATIONS

  • Industrial Equipment
  • Stationary Solar & Wind Storage
  • Personal Transportation
  • Autonomous Drones
  • Autonomous Robotics
  • Electric Bikes
  • Electric Bicycles
  • Electric Scooters
  • Special Purpose Machines
  • Golf Carts
  • Go Carts
  • Renewable energy

SAFETY

Various safety mechanisms are built in: disconnection of load or charger if any of the cells go out of allowed range of voltage or current, also up to two temperature points are measured and can be used for emergency disconnect or for disabling of charging if cell temperature is too low.

Méně
Přečtěte si více
1 379,73 PLN
1 379,73 PLN Cena brutto / ks
1 121,73 PLN Čistá cena / ks
S DPH

Dostupnost: Upozorňujeme, že tento produkt není na skladě

Kliknutím na tlačítko „Požádat o dostupnost“ můžete provést předobjednávku a ohlásit svůj zájem o produkt.

Vyprodáno
