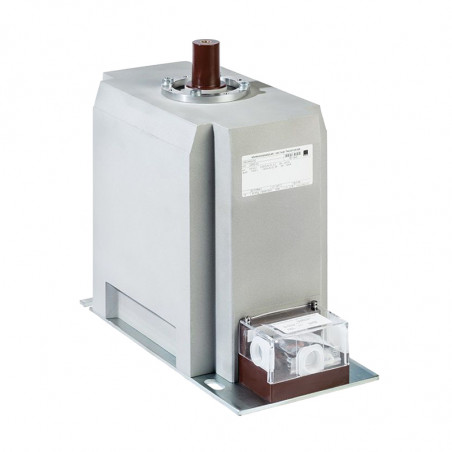

Ugecak..d2- izolovaný střední napětí napětí transformátor

UGECAK..D2- Medium voltage Insulated Voltage Transformer

The UGECAK is a medium voltage insulated voltage transformer with screening against electric fields which enables mounting with no phase distance. This product is cast resin insulated and touch-proved. The transformer is able to measure voltage up to 24kV and is suitable for front- or top conus. The UGECAK is equipped with conical socket connection according to DIN47636. The voltage transformer can be used for switchgear, is maintenance-free and mountable in any position. The secondary terminals are protected with a sealable cover with a degree of protection of IP 20. The product is GOST approved



Technical Specifications

Application Switchgear
Standard IEC61869-3, VDE 0414
Rated insulation voltage Up to 24/50/125kV
Maximum rated primary voltage 11/√3 kV
Rated voltage factor 1.9UN /8h, 1.2UN/ continuous
Secondary voltages 100/√3 V lub 110/√3 V other options available on reques
Rated output As required
For example. 2.5, 5, 10, 15, 30 VA
Accuracy class As required
For example 0.2, 3P
Rated terminal limiting output Sth 500VA Measuring winding
100VA Auxiliary winding
Rated frequency As required.
For example 50/60 Hz
Class of insulation E
Secondary terminals Protected with a sealable cover, degree of protection IP 20

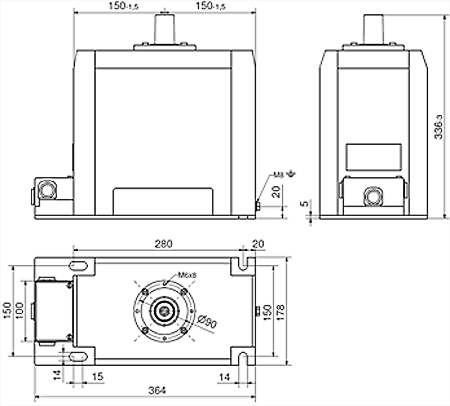

Dimensions:

UGECAK..D2- Izolowany przekładnik napięciowy średniego napięcia wymiary

Wiring Diagram

UGECAK..D2- Izolowany przekładnik napięciowy średniego napięcia - schemat połączeń
