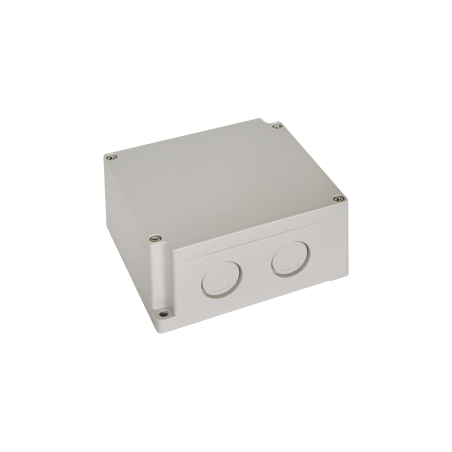

Screw type enclosure B series

Housings for easy and fast installation.

It has few discoloration even used outdoors for a long time by addition of UV Stabilizer.

It protects electric/electronic instruments by using the material with substance preventing static electricity.

It is easy to make without breakage in hole and drill press and very strong against impact by using the material for high impact resistance.

We can supply optimized products which will be made of ordered material you request considering purpose and area used besides standard specification.

Specification

Temperature range ABS : - 40 ~ + 70℃ | PC : - 40 ~ + 110℃
Flammability Rating ABS : 94-HB | PC : 94-V-0, 5VA, HB


Model and size

Size (Include cover) Model
W1×L1×H1 (mm) W1×L1×H1 (inch) ABS Grey cover ABS Transparent cover
52×90×45 1.97×3.54×1.77 BC-AGB-050904 BC-ATB-050904
65×90×45 2.56×3.54×1.77 BC-AGB-060904 BC-ATB-060904
90×100×45 3.54×3.94×1.77 BC-AGB-091004 BC-ATB-091004
100×200×65 3.94×7.87×2.56 BC-AGB-102006 BC-ATB-102006
150×160×65 5.91×6.3×2.56 BC-AGB-151606 BC-ATB-151606
