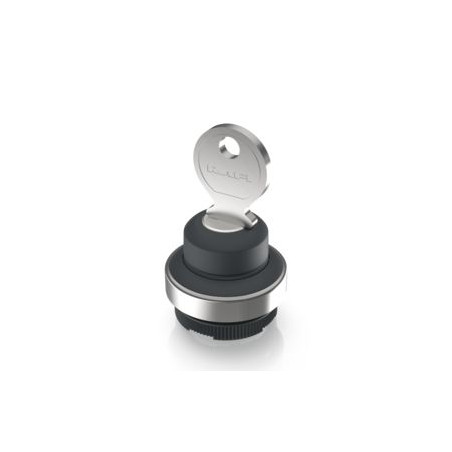

RAFIX 22 FSR - Klíčové spínače
  • RAFIX 22 FSR - Klíčové spínače

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: RAFI

RAFIX 22 FSR - Klíčové spínače

RAFIX 22 FSR key switches are equipped with a plastic protective cap that shields against dirt, water, and the risk of icing when closed. Each set includes two keys. The locking systems we use have been designed in accordance with DIN EN 1303 standards by leading lock manufacturers. These are open, mechanical systems that require occasional maintenance by the machine or installation operator depending on environmental conditions.

Switching function Rotation angle Catalog number
Momentary 1 x 40° 1.30.285.001/0100
Momentary 2 x 40° 1.30.285.101/0100
Constant 1 x 90°, L-shaped 1.30.285.221/0100
Constant 1 x 90°, V-shaped 1.30.285.321/0100
RAFIX-schema

General Information
Front ring color Black
Collar shape Round
Dimensions
Collar diameter 31.3mm
Height 45.1mm
Button hole 22.3mm
Mechanical Properties
Mounting Threaded
Lock type 001
Tightening torque 1.2Nm
Maximum switch actuating force 1.3Nm
Others
Operating temperature range -40 – 80°C
IP rating (front side) IP65
ROHS Yes
REACH Yes
