Joystick AJN

Joystick AJN

The AJN Joystick provides reliability and long lifespan necessary in demanding environmental conditions or industrial applications. The 3D Hall sensors ensure high accuracy and stable output signal. Additionally, various types of multi-function grips are available.

Features

  • Contactless technology utilizing Hall effect
  • Redundant sensors
  • Life expectancy above 10 million cycles (without lock option)
  • 2 sensors per axis
  • Integrated temperature compensation
  • Environmentally protected electronics
  • Standard or custom multi-function grips
  • Designed for armrest and housing applications (AJ45)

Custom Modifications

  • Output characteristics
  • Operating force
  • Gating pattern
  • Lever deflection angle
  • Multi-function grips


System Voltage 12 or 24V
Voltage Range 9-32V
Maximum Current 75 mA at 24V DC
Max. Output Voltage Vsupply – 2.5V DC
PWM Output PW2 500 Hz ± 80 Hz
CAN Bus Output J19 SAE J1939
Other Electrical Features EMI 100 V/m


Life Expectancy > 10 million cycles
Operating Temperature - 40°C to 85°C
Storage Temperature - 50°C to 90°C
Maximum Horizontal Load 1000 Nm
Maximum Vertical Load 1110 Nm
Maximum Load (Z Axis) 25 Nm
IP Protection IP 67


AJ42 & AJ44

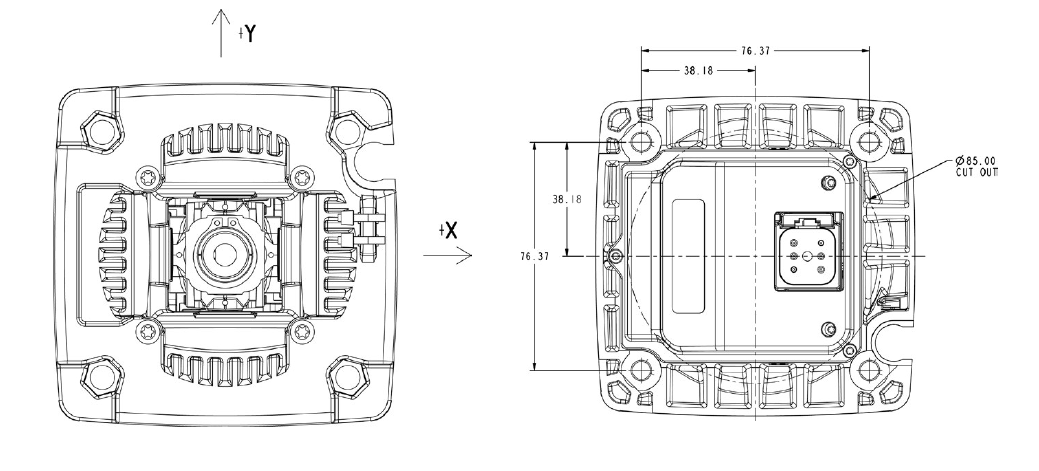

With square gating (X and Y can be swapped)		 Mounting Dimensions
(for AJ42 and AJ44)
AJN-dataschema

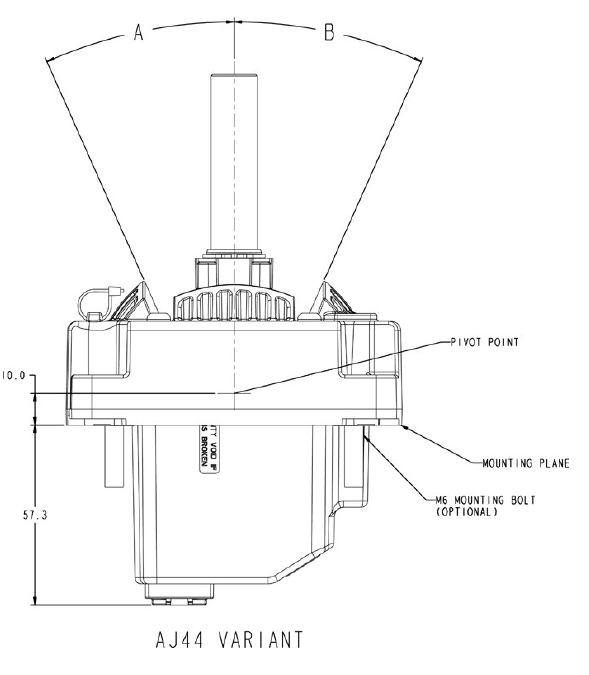

AJ44 Variant

Option Angle of Deflection A, X Axis Angle of Deflection B, X Axis Angle of Deflection A, Y Axis Angle of Deflection B, Y Axis
1-001 23° 23° 25° 25°
1-002 16° 16° 16° 16°
1-003 20° 20° 20° 20°
1-004 0° 0° 0° 0°
4-001 14° 14° 17° 17°
4-001 17° 17° 17° 17°


AJN-dataschema2
