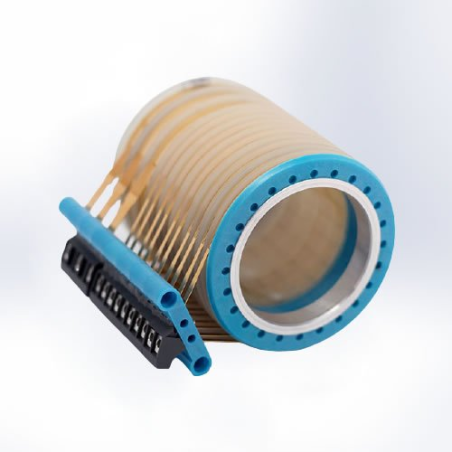

SLIP RING SMX

SLIP RING SMX

FACTS

  • Replaceable brush block
  • Fieldbusses

APPLICATION EXAMPLES

  • Cable Winding System
  • Drain Inspection
  • Packaging Machine
  • Robotic
  • Surveillance Camera
  • Video System / CCTV

DATA

SM004 SM045 SM50 SM070 SM090 SM140 SM400
Outer diameter 3,8 mm 51 mm 52 mm 72 mm 90 mm 140 mm 400 mm
Inner diameter - 25 mm 30 mm 50 mm 70 mm 100 mm 300 mm
Option - Replaceable brush block Replaceable brush block Replaceable brush block Replaceable brush block Replaceable brush block Replaceable brush block
Max. number of rings 5 14 24 24 24 18 45
Max. current per ring 1 A 25 A 16 A 16 A 16 A 16 A 45 A
Max. voltage 24 VDC 230 VAC 400 VAC 400 VAC 400 VAC 400 VAC 400 VAC
Dielectric strength 500 VAC 1000 VAC 2000 VAC 2000 VAC 2000 VAC 2000 VAC 2000 VAC
Electrical insulation resistance >500 MΩ przy 500 VDC >500 MΩ przy 500 VDC >500 MΩ przy 500 VDC >500 MΩ przy 500 VDC >500 MΩ przy 500 VDC >500 MΩ przy 500 VDC >500 MΩ przy 500 VDC
Max. rotation speed 50 rpm 500 rpm 500 rpm 500 rpm 500 rpm 500 rpm 500 rpm
Protection class IP00 IP00 IP00 IP00 IP00 IP00 IP00
Operating temperature -20 °C ... +80 °C -20 °C ... +80 °C -20 °C ... +80 °C -20 °C ... +80 °C -20 °C ... +80 °C -20 °C ... +80 °C -20 °C ... +80 °C
Electrical connection Flying leads / terminals / connectors Flying leads / terminals / connectors Flying leads / terminals / connectors Flying leads / terminals / connectors Flying leads / terminals / connectors Flying leads / terminals / connectors Flying leads / terminals / connectors
Housing material Fibre- reinforced polycarbonate Fibre-reinforced polycarbonate / Aluminium Fibre-reinforced polycarbonate / Aluminium Fibre-reinforced polycarbonate / Aluminium Fibre-reinforced polycarbonate / Aluminium Fibre-reinforced polycarbonate / Aluminium Fibre-reinforced polycarbonate / Aluminium
