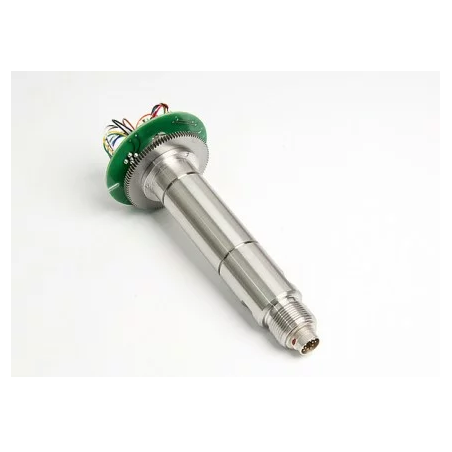

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

SLIP RING SW020

SLIP RING SW020

FACTS

  • Slip ring resolver combination
  • Resolver evaluation on board
  • Gear wheel
  • Stainless steal shaft
  • Plug & play solution

APPLICATION EXAMPLES

  • Access System
  • Airplane Cabin Attention System
  • Drain Inspection
  • Metrology System
  • Packaging Machine
  • Robotic
  • Support Arm Lamp
  • Surveillance Camera
  • Video System / CCTV

SLIP RING DATA

Number of rings: 12
Current per ring: max. 2A
Voltage: max. 48 VDC
Dielectric strength: 500 VAC
Rotation speed: max. 250 rpm
Protection class: IP51
Operating temperature: -20 °C ... +80 °C
Pole pairs: 1
Transformation ratio: 0.5 ± 10%
Input current: 58 mA at 7 V & 5 kHz
Accurancy: ± 10‘
Electrical connection: Connectors
Housing material: Stainless steel
Length: L1 on request
