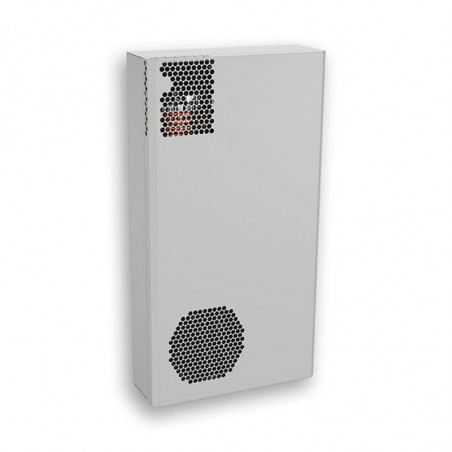

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu
please use latin characters
Casing A | Casing B | Casing C | Casing D |
![]() |
![]() |
![]() |
![]() |
Casing E | Casing F |
![]() |
![]() |
Assembly method | Type | Cooling power [W] L35L35* |
Dimensions [mm] |
Nominal current and voltage [A/V] |
Air flow conditioner/cabinet [m3h] |
Weight [Kg] |
Picture |
---|---|---|---|---|---|---|---|
Wall | KG-4266 | 320 | 520x270x110 | 2,4/230 | 170/125 | 13,3 | A |
KG-4266 120 | 320 | 520x270x110 | 3,2/120 | 170/125 | 13,3 | A | |
Wall | KG-4268 | 400 | 520x320x110 | 1,5/230 | 200/125 | 14,2 | B |
KG-4268 120 | 400 | 520x320x110 | 3,2/120 | 200/125 | 14,2 | B | |
KG-4267 | 400 | 340x520x110 | 1,5/230 | 200/125 | 14,8 | C | |
KG-4267 120 | 400 | 340x520x110 | 3,2/120 | 200/125 | 16,8 | C | |
KG-4269 | 430 | 600x320x110 | 1,5/230 | 200/125 | 16,0 | D | |
KG-4269 120 | 430 | 600x320x110 | 3,2/120 | 200/125 | 16,0 | D | |
Roof | KG-4480 | 200 | 210x255x350 | 1,5/230 | 200/125 | 14,0 | E |
KG-4480 120 | 200 | 210x255x350 | 3,2/120 | 200/125 | 14,0 | E | |
KG-4482 | 450 | 230x330x430 | 1,9/230 | 250/140 | 23,0 | F | |
KG-4482 120 | 450 | 230x330x430 | 3,6/120 | 250/140 | 23,0 | F |
*L35L35 | |____ external temperature |_______ cabinet temperature
