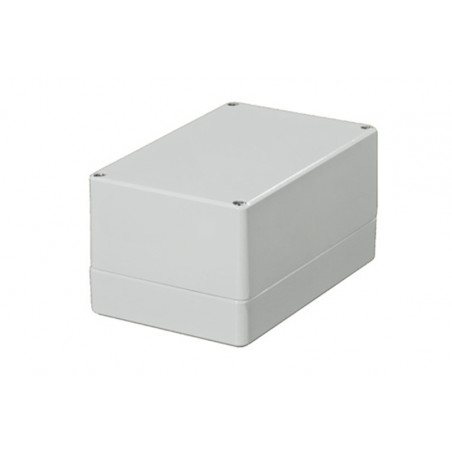

ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro
  • ALORNORM - IP67 Hliníkové pouzdro

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Rolec

ALORNORM - IP67 Hliníkové pouzdro

AluNORM - aluminium casing  IP67


Aluminium casing
  • IP66/IP67
  • one channel install system
  • more space inside
  • equivalent to polyester casings
  • available 86 versions, sizes5 0 x 65 x 40 mm - 640 x 320 x 120 mm.
  • EX versions available

AluNORM dimensions






aluNORM AS
Type Number L W H D E G M D A B L T S IS HS EMV Plus SF
AS 060 100.060.000 50 65 40 38 53 130
AS 062 100.062.000 65 65 40 53 53 310
AS 064 100.064.000 100 65 40 88 53 220
AS 066 100.066.000 150 65 40 138 53 310
AS 080 100.080.000 80 80 60 67 67 320
AS 082 100.082.000 120 80 60 107 67 460
AS 084 100.084.000 160 80 60 147 67 610
AS 100 100.100.000 100 100 80 87 87 550
AS 102 100.102.000 150 100 80 137 87 730
AS 104 100.104.000 200 100 80 187 87 910
AS 120 100.120.000 120 120 100 102 102 1.070
AS 122 100.122.000 180 120 100 162 102 1.310
AS 124 100.124.000 240 120 100 222 102 1.680
AS 160 100.160.000 160 160 100 142 142 1.520
AS 162 100.162.000 240 160 100 222 142 1.980
AS 164 100.164.000 320 160 100 302 142 2.480
AS 166 100.166.000 480 160 100 462 142 3.900
AS 200 100.200.000 200 200 120 180 180 2.480
AS 202 100.202.000 300 200 120 280 180 3.250
AS 204 100.204.000 400 200 120 380 180 4.700
AS 240 100.240.000 240 240 120 220 220 3.400
AS 242 100.242.000 360 240 120 340 220 4.000
AS 244 100.244.000 480 240 120 460 220 6.100
AS 320 100.320.000 320 320 120 300 300 4.900
AS 322 100.322.000 480 320 120 460 300 6.600
AS 324 100.324.000 640 320 120 620 300 8.700

Standard  Not available Option

aluNORM AD
Type Number L W H D E g M D A Q B L T S IS HS EMV Plus SF
AD 080 101.080.000 80 80 60 67 67 320
AD 082 101.082.000 120 80 60 107 67 460
AD 084 101.084.000 160 80 60 147 67 610
AD 100 101.100.000 100 100 80 87 87 550
AD 102 101.102.000 150 100 80 137 87 730
AD 104 101.104.000 200 100 80 187 87 910
AD 120 101.120.000 120 120 100 102 102 1.070
AD 122 101.122.000 180 120 100 162 102 1.310
AD 124 101.124.000 240 120 100 222 102 1.680
AD 160 101.160.000 160 160 100 142 142 1.520
AD 162 101.162.000 240 160 100 222 142 1.980
AD 164 101.164.000 320 160 100 302 142 2.480
AD 166 101.166.000 480 160 100 462 142 3.900
AD 200 101.200.000 200 200 120 180 180 2.480
AD 202 101.202.000 300 200 120 280 180 3.250
AD 204 101.204.000 400 200 120 380 180 4.700
AD 240 101.240.000 240 240 120 220 220 3.400
AD 242 101.242.000 360 240 120 340 220 4.000
AD 244 101.244.000 480 240 120 460 220 6.100
AD 320 101.320.000 320 320 120 300 300 4.900
AD 322 101.322.000 480 320 120 460 300 6.600
AD 324 101.324.000 640 320 120 620 300 8.700

Standard Not available Option

aluNORM AF
Type Number L W H D E g M D A Q B L T S HS EMV Plus SF
AF 080 102.080.000 80 80 40 67 67 240
AF 082 102.082.000 120 80 40 107 67 330
AF 084 102.084.000 160 80 40 147 67 400
AF 100 102.100.000 100 100 54 87 87 420
AF 102 102.102.000 150 100 54 137 87 540
AF 104 102.104.000 200 100 54 187 87 690
AF 120 102.120.000 120 120 66 102 102 780
AF 122 102.122.000 180 120 66 162 102 1.010
AF 124 102.124.000 240 120 66 222 102 1.260
AF 160 102.160.000 160 160 66 142 142 1.130
AF 162 102.162.000 240 160 66 222 142 1.560
AF 164 102.164.000 320 160 66 302 142 1.910
AF 166 102.166.000 480 160 66 462 142 3.030
AF 200 102.200.000 200 200 80 180 180 1.780
AF 202 102.202.000 300 200 80 280 180 2.380
AF 204 102.204.000 400 200 80 380 180 3.560
AF 240 102.240.000 240 240 80 220 220 2.380
AF 242 102.242.000 360 240 80 340 220 3.630
AF 244 102.244.000 480 240 80 460 220 4.690
AF 320 102.320.000 320 320 80 300 300 4.000
AF 322 102.322.000 480 320 80 460 300 5.650
AF 324 102.324.000 640 320 80 620 300 7.350

Standard Not available Option

aluNORM AH
Type Number L W H D E g M D A L T S HS EMV Plus SF
AH 100 103.100.000 100 100 106 87 87 630
AH 102 103.102.000 150 100 106 137 87 760
AH 104 103.104.000 200 100 106 187 87 940
AH 120 103.120.000 120 120 134 102 102 1.280
AH 122 103.122.000 180 120 134 162 102 1.560
AH 124 103.124.000 240 120 134 222 102 2.000
AH 160 103.160.000 160 160 134 142 142 1.810
AH 162 103.162.000 240 160 134 222 142 2.300
AH 164 103.164.000 320 160 134 302 142 2.950
AH 166 103.166.000 480 160 134 462 142 4.640
AH 200 103.200.000 200 200 159 180 180 2.950
AH 202 103.202.000 300 200 159 280 180 3.880
AH 204 103.204.000 400 200 159 380 180 5.600
AH 240 103.240.000 240 240 159 220 220 4.050
AH 242 103.242.000 360 240 159 340 220 4.760
AH 244 103.244.000 480 240 159 460 220 7.260

Standard Not available Option
