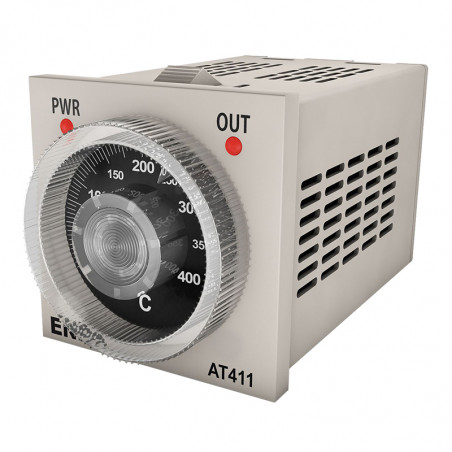

Analogový regulátor teploty AT411
  • Analogový regulátor teploty AT411

Fotografie slouží pouze pro informační účely. Zobrazit specifikaci produktu

please use latin characters

Výrobce: Sisel

Analogový regulátor teploty AT411

Analog temperature controller AT411

The AT411 analog controller is a Sisel brand specialized temperature controller that is great for most specialty industries.

  • Adjustable proportionality range;
  • Protection in case of sensor damage;
  • Complies with European standards.

Technical data - analog temperature contoller AT411

Accuracy ±3% (full scale)
Measurement range
Fe-Const: 0 ... 300 °C
Pt 100: 0 ... 400 °C
Fe-Const: 0 ... 400 °C
Input type
 Thermocouple Fe-Const or Pt100 (select during ordering)
Output Relay: 250VAC, 2A, NC+NO
Logic: 0/12V DC, 20mA
Power supply
 230V AC +15%, -20%, 50/60Hz, max 2W; 24V AC ±10%, 50/60Hz (select during ordering)
Ambient temperature 0 ... 50 °C
Dimensions [mm]
 48 x 48 x 82
Connection round 8-pin socket
Lifetime 30.000.000 mechanical operations; 300.000 electrical operations.
Regulation type
 ON-OFF or proportional
Weight 170 g



Types of analog temperature controller AT411

Type Power supply Output Range Sensor type
AT411-400R 230VAC Relay 0 - 400 °C Pt100
AT411-400R-SM 7 - 24 VAC / 9 - 30VDC Relay 0 - 400 °C Pt100
AT411-400R-SSR 230VAC  Logic 0 - 400 °C Pt100
AT411-400R-SM-SSR 7 - 24 VAC / 9 - 30VDC Logic 0 - 400 °C Pt100
AT411-400F 230V AC  Relay 0 - 400 °C Fe-Const
AT411-400F-SM 7 - 24 VAC / 9 - 30VDC Relay 0 - 400 °C Fe-Const
AT411-400F-SSR 230VAC  Logic 0 - 400 °C Fe-Const
AT411-400F-SM-SSR 7 - 24 VAC / 9 - 30VDC Logic 0 - 400 °C Fe-Const
AT411-300F 230V AC  Relay 0 - 300 °C Fe-Const
AT411-300F-SM 7 - 24 VAC / 9 - 30VDC Relay 0 - 300 °C Fe-Const
AT411-300F-SSR 230V AC  Logic 0 - 300 °C Fe-Const
AT411-300F-SM-SSR 7 - 24 VAC / 9 - 30VDC Logic 0 - 300 °C Fe-Const
AT411-200F 230V AC Relay 0 - 200 °C Fe-Const
AT411-200F-SM 7 - 24 VAC / 9 - 30VDC Relay 0 - 200 °C Fe-Const
AT411-200F-SSR 230V AC Logic 0 - 200 °C Fe-Const
AT411-200F-SM-SRR 7 - 24 VAC / 9 - 30VDC Logic 0 - 200 °C Fe-Const
PF083A-E 8-pin socket for DIN rail mounting



Dimensions Connection diagram
ANALOGOWY REGULATOR TEMPERATURY AT411 wymiary ANALOGOWY REGULATOR TEMPERATURY AT411 schemat wyprowadzeń
